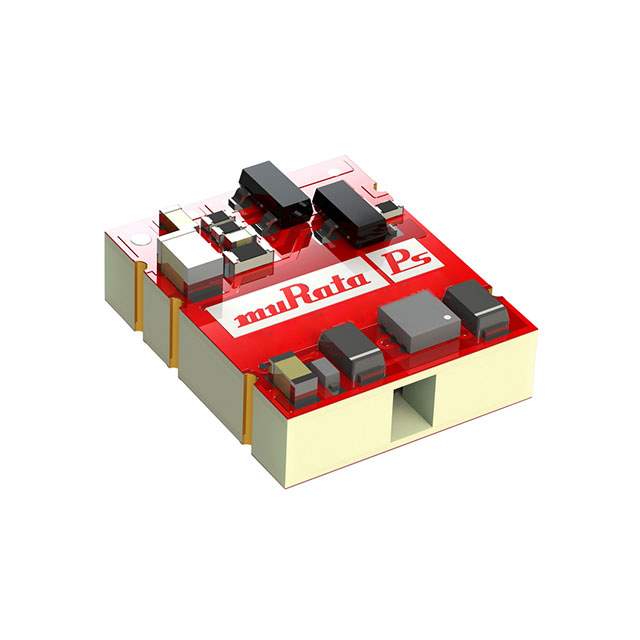

Same model may have multiple batches, images only for reference.

NXE2S0505MC-R7

Name: NXE2S0505MC-R7
Brand: Murata Power Solutions Inc.
SKU: 1337630
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NXE2S0505MC-R7
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NXE2 (2W)
Package	Tape & Reel
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Current - Output (Max)	400mA
Power (Watts)	2 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Features	SCP
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	72%
Mounting Type	Surface Mount
Package / Case	14-SMD Module, 5 Leads
Size / Dimension	0.50" L x 0.40" W x 0.17" H (12.7mm x 10.4mm x 4.4mm)
Base Product Number	NXE2S05
Standard Package	180
MSL Level	2 (1 Year)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1337630-NXE2S0505MC-R7
Ultra Librarian 3D Model	Ultra Librarian NXE2S0505MC-R7 CAD Model

Alternative Products

Description

The NXE2 (2W) series is a type of isolated module DC-DC converter that features SCP capabilities.

Series: NXE2 (2W)
Features: SCP
Application: ITE (Commercial)
Standard Package: 180
Power: 2 W
Outputs: 1
Output Current (Max): 400mA
Input Voltage: 4.5V to 5.5V
Output Voltage: 5V
Efficiency: 72%
Mounting Type: Surface Mount
Package/Case: 14-SMD Module, 5 Leads
Manufacturer: Murata Power Solutions Inc.
Operating Temperature: -40°C to 85°C
