Same model may have multiple batches, images only for reference.

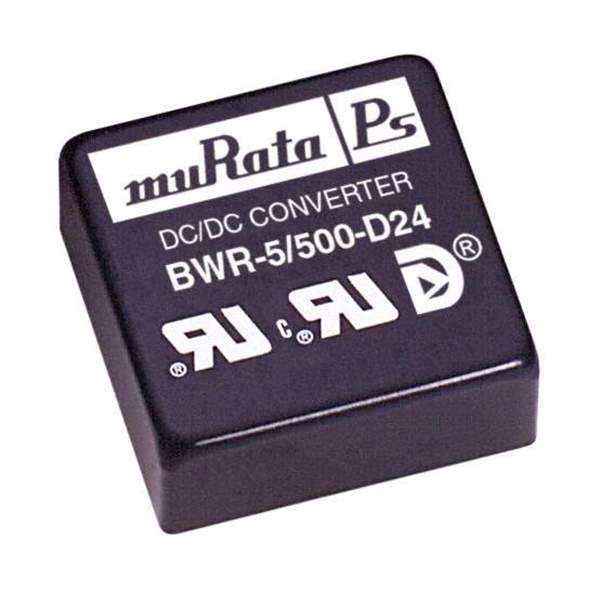

BWR-5/500-D24-C Real Image
Same model may have multiple batches, images only for reference.

BWR-5/500-D24-C

Part No BWR-5/500-D24-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 5W
Datasheet
BWR-5/500-D24-C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Estimated Pruduction Lead Time 55 Weeks
Features Isolated Module DC DC Converter 2 Output 5V -5V - 500mA, 500mA 18V - 36V Input
Manufacturer Murata Power Solutions Inc.
Series BWR (10W)
Package Tube
Operating Temperature Range -25°C ~ 95°C
Mounting Through Hole
Package 6-DIP Module
Family Name BWR-5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1713-5, BWR5500D24C
Quantity per package 96
Popularity High
Supply and Demand Status Balance
Win Source Part Number 913814-BWR-5/500-D24-C
Ultra Librarian 3D Model Ultra Librarian BWR-5/500-D24-C CAD Model

Description

The Murata Power Solutions Inc. BWR-5/500-D24-C is an isolated module DC DC converter with two outputs of 5V and -5V, respectively, and a current rating of 500mA and 500mA.

  • Package: 6-DIP module
  • Mounting: Through-hole
  • Series: BWR (10W)
  • Operating Temperature: -25°C to 95°C
  • Input Voltage: 18V to 36V
  • ECCN: EAR99
  • Popularity: High
  • Supply and Demand: Balanced
  • Quantity per Package: 96
  • Production Lead Time: 55 weeks
  • REACH: Not affected
