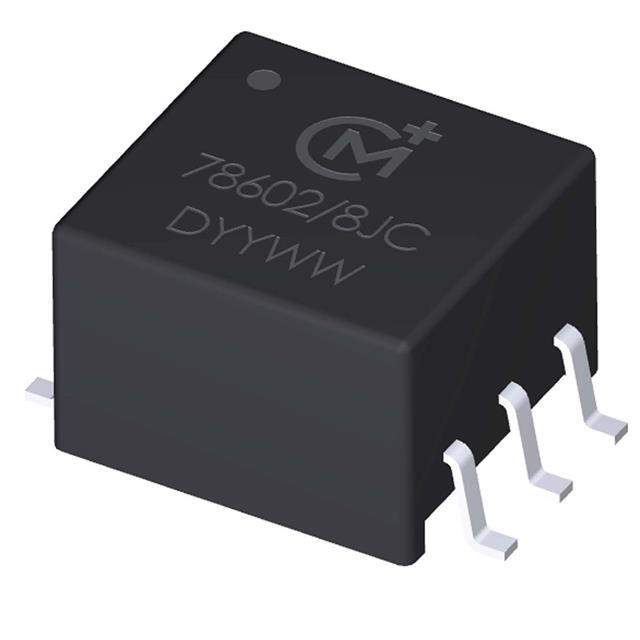

78615/9JC Real Image
Same model may have multiple batches, images only for reference.

78615/9JC

Part No 78615/9JC
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description XFRMR 1CT:1CT 56VUS SMD TOROID
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Estimated Pruduction Lead Time 30 Weeks
Manufacturer Murata Power Solutions Inc.
Series 786
Package Tube
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Family Name 78615
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Part Number 786159JC, 811-2423
Quantity per package 50
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 858244-78615/9JC
Ultra Librarian 3D Model Ultra Librarian 78615/9JC CAD Model

Description

The Murata Power Solutions Inc. 78615/9JC is a transformer categorized under Transformers.

  • Category: Transformers
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Tube
  • Product Type: Surface Mount
  • Family Name: 78615
  • Supply and Demand Status: Limited
  • Quantity per Package: 50
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 30 weeks
  • REACH: Unaffected
  • HTSUS: 8504.31.2000
