Same model may have multiple batches, images only for reference.

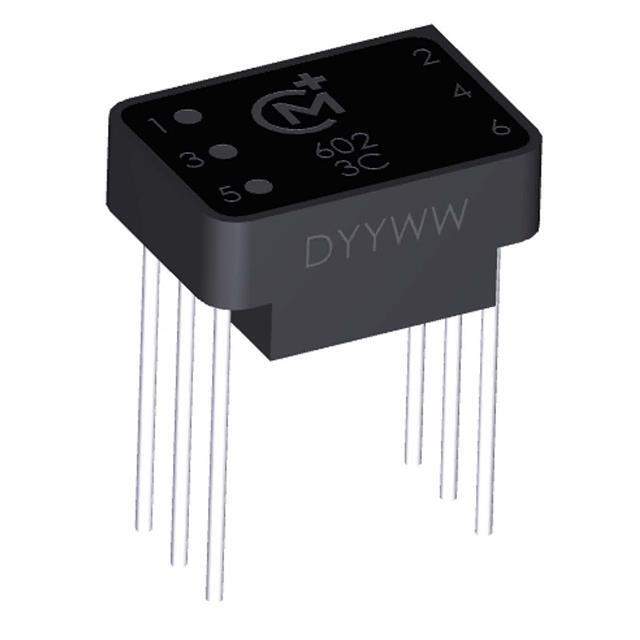

76615/1C Real Image
Same model may have multiple batches, images only for reference.

76615/1C

Part No 76615/1C
Manufacturer Murata Power Solutions Inc.
Catalog Pulse Transformers
Description XFRMR 1CT:1CT 3200UH 45VUS D  /  3.2mH General Purpose Pulse Transformer 1CT:1CT Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Murata Power Solutions Inc.
Series 766
Package Tube
Transformer Type General Purpose
Inductance 3.2mH
ET (Volt-Time) 45VµS
Mounting Type Through Hole
Dimension 0.500" L x 0.350" W (12.70mm x 8.89mm)
Height - Seated (Max) 0.260" (6.60mm)
Temperature Range - Operating 0°C ~ 70°C
Base Product Number 76615
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Other Names 766151C,811-1278-5
Standard Package 50
Win Source Part Number 1184010-76615/1C
Ultra Librarian 3D Model Ultra Librarian 76615/1C CAD Model

Description

The 1184010-76615/1C transformer is a general-purpose pulse transformer that is ideal for use in a wide range of electronic applications.

  • Inductance: 3.2mH
  • Operating Temperature: 0°C to 70°C
  • Mounting: Through Hole
  • Height: 0.260" (6.60mm)
  • Series: 766
  • Package: Tube
  • Standard Package: 50
  • ET (Volt-Time): 45VμS
  • REACH: Unaffected
  • ECCN: EAR99
  • Manufacturer: Murata Power Solutions Inc.
  • Alternative Parts: 766151C and 811-1278-5
