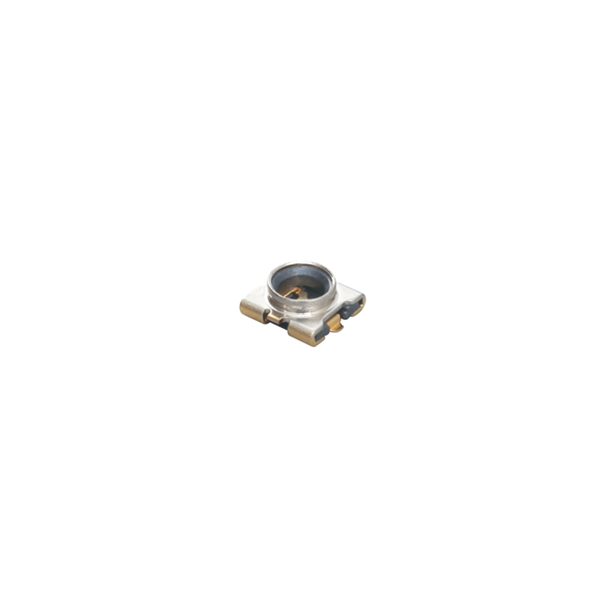

MM8930-2620RJ4 Real Image
Same model may have multiple batches, images only for reference.

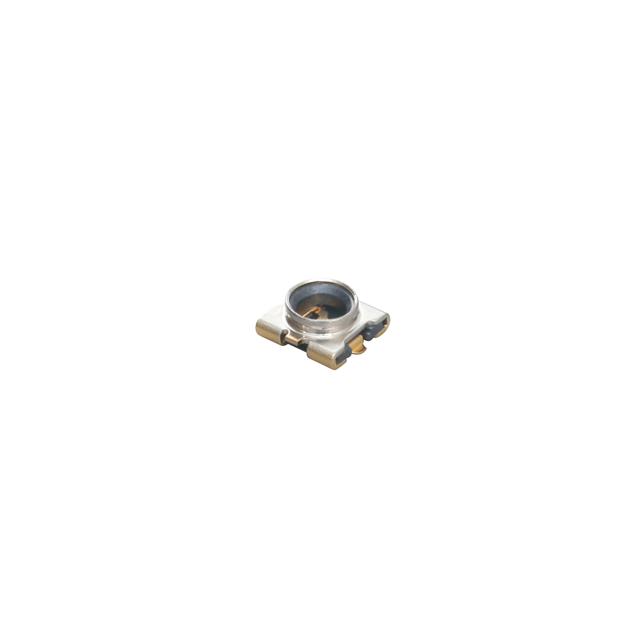

MM8930-2620RJ4

Part No MM8930-2620RJ4
Manufacturer Murata Electronics North America
Catalog Coaxial Connectors (RF)
Description COAX CONN / SWH Connector Receptacle, Male Pin 50Ohm Surface Mount Solder
Datasheet
MM8930-2620RJ4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Murata Electronics
Package Tape & Reel (TR)
Connector Style SWH
Connector Type Receptacle, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 6 GHz
Number of Ports 1
Features Internal Switch
Temperature Range - Operating -40°C ~ 85°C
Voltage Rating 30 V
Base Product Number MM8930
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4010
Other Names 490-MM8930-2620RJ4-ND,490-MM8930-2620RJ4,490-MM8930-2620RJ4TR
Standard Package 4,000
Win Source Part Number 1080579-MM8930-2620RJ4
Ultra Librarian 3D Model Ultra Librarian MM8930-2620RJ4 CAD Model

Description

The Murata Electronics Coaxial Connector (RF) is a receptacle male pin connector that has an internal switch.

  • Connector Type: Receptacle Male Pin
  • Internal Switch: Yes
  • Voltage Rating: 30V
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: SMD (SMT)
  • Impedance: 50Ohm
  • Frequency Range: Up to 6 GHz
  • Package: Tape & Reel
  • Units per Package: 4000
  • Market Availability: Open market
