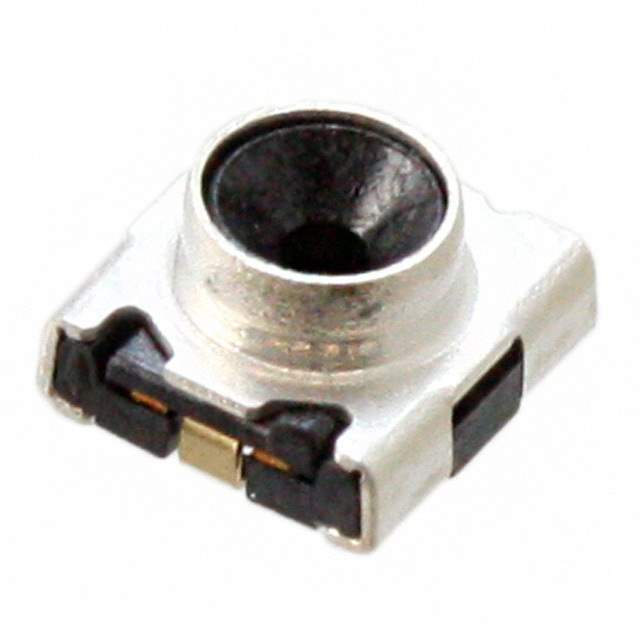

MM8430-2610RB3 Real Image MM8430-2610RB3 label picture
Same model may have multiple batches, images only for reference.
MM8430-2610RB3 Real Image MM8430-2610RB3 label picture
MM8430-2610RB3 Real Image MM8430-2610RB3 label picture
Same model may have multiple batches, images only for reference.

MM8430-2610RB3

Part No MM8430-2610RB3
Manufacturer Murata Electronics North America
Catalog Coaxial Connectors (RF)
Description CONN SWD RCPT STR 50 OHM SMD
Datasheet
MM8430-2610RB3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Active
Connector Style SWD
Connector Type Receptacle, Female Socket
Contact Termination Solder
Shield Termination Solder
Impedance 50 Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Maximum Input Frequency 6GHz
Features Internal Switch
Housing Color Silver
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 023627-MM8430-2610RB3
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MM8430-2610RB3 CAD Model

Description

The Murata Electronics North America SWD connector is a receptacle female socket connector that has an internal switch.

  • Fastening Type: snap-on
  • Contact Termination: solder
  • Connector Style: SWD
  • Housing Color: silver
  • Mounting: SMD (SMT)
  • Impedance: 50 Ohm
  • Shield Termination: soldered
  • Frequency Range: up to 6GHz
  • Popularity: commonly used
  • Popularity Rating: 92 percent
  • Supply and Demand Status: in balance
