Same model may have multiple batches, images only for reference.

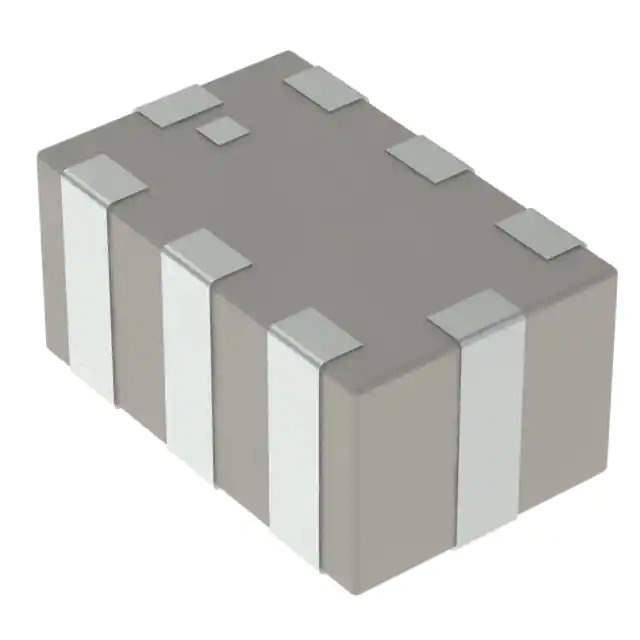

LFL185G42TD1A241 Real Image
Same model may have multiple batches, images only for reference.

LFL185G42TD1A241

Part No LFL185G42TD1A241
Manufacturer Murata Electronics North America
Catalog RF Filters
Description RF FILTER LOW PASS 5.425GHZ 0603 / 5.425GHz Center Frequency Low Pass RF Filter (Radio Frequency) 525MHz Bandwidth 0.60dB 0603 (1608 Metric), 4 PC Pad
Datasheet
LFL185G42TD1A241 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Murata Electronics North America
Series LFL
Package Tape & Reel
Product Status Not For New Designs
Frequency 5.425GHz Center
Bandwidth 525MHz
Filter Type Low Pass
Insertion Loss 0.60dB
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric), 4 PC Pad
Size / Dimension 0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max) 0.028" (0.70mm)
Base Product Number LFL18
Standard Package 4,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 467777-LFL185G42TD1A241
Ultra Librarian 3D Model Ultra Librarian LFL185G42TD1A241 CAD Model

Description

The LFL185G42TD1A241 is a low pass RF filter designed for use in electronic devices. It is part of the LFL series by Murata Electronics North America.

  • Frequency Center: 5.425GHz
  • Bandwidth: 525MHz
  • Insertion Loss: 0.60dB
  • Package Size: 0.063" L x 0.032" W (1.60mm x 0.80mm)
  • Mounting: Surface Mountable
  • Package: 0603 (1608 Metric) with 4 PC pads
  • Packaging: Tape and Reel
  • Standard Package: 4,000 pcs
