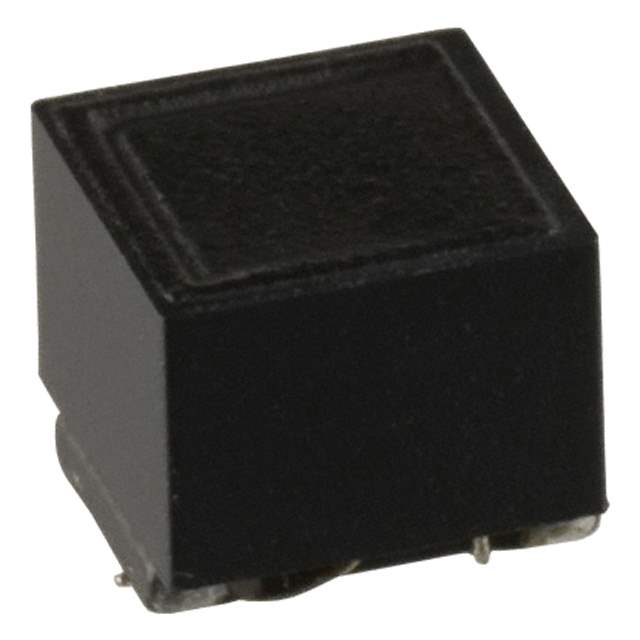

DLW5BSN302SQ2L Real Image
Same model may have multiple batches, images only for reference.

DLW5BSN302SQ2L

Part No DLW5BSN302SQ2L
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 500MA 2LN 3 KOHM SMD
Datasheet
DLW5BSN302SQ2L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Murata Electronics North America
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 2
Impedance @ Frequency 3 kOhm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 300 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height (Max) 0.177" (4.50mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 050845-DLW5BSN302SQ2L
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DLW5BSN302SQ2L CAD Model

Description

DLW5BSN302SQ2L Description

The DLW5BSN302SQ2L offers exceptional performance in noise filtering applications, thanks to its advanced design. Perfect for maintaining signal integrity in digital circuits, this choke coil is a must-have for modern electronics.

Applications

  • USB interfaces
  • Audio equipment
  • Mobile devices

Features and Benefits

  • High reliability in various temperatures
  • Low winding resistance to reduce power loss
  • High saturation current capability
