Same model may have multiple batches, images only for reference.

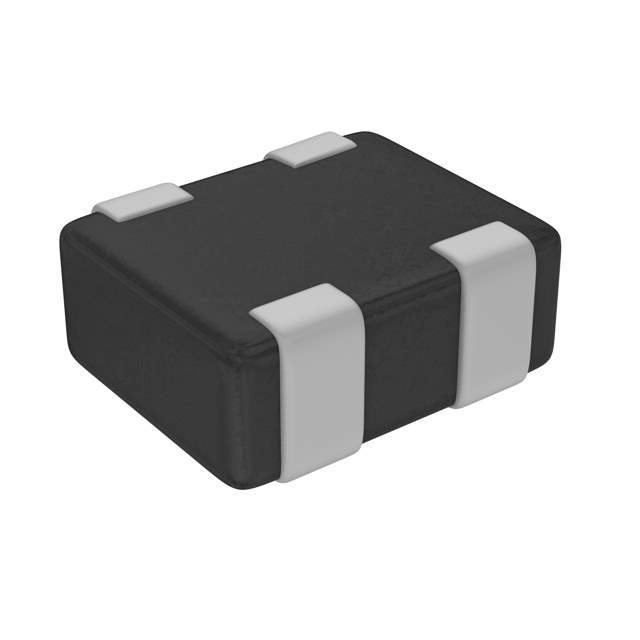

DLM0QSN500HY2D Real Image
Same model may have multiple batches, images only for reference.

DLM0QSN500HY2D

Part No DLM0QSN500HY2D
Manufacturer Murata Electronics North America
Catalog Common Mode Chokes
Description CMC 100MA 2LN 50 OHM SMD
Datasheet
DLM0QSN500HY2D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000641-DLM0QSN500HY2D
Win Source Part Number Cross
Manufacturer Murata Electronics
Category Filters Common Mode Chokes
Series DLM
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Number of Lines 2
Impedance @ Frequency 50 Ohms @ 100 MHz
Current Rating (Max) 100mA
Ultra Librarian 3D Model Ultra Librarian DLM0QSN500HY2D CAD Model

Description

Murata Electronics DLM Common Mode Chokes are designed for noise suppression.

  • Current Rating (Max): 100mA
  • Number of Lines: 2
  • Impedance @ Frequency: 50 Ohms @ 100 MHz
  • Package: tape and reel (TR) or cut tape (CT) packages, or Digi-Reel®
  • Status: active and have alternative parts (cross-reference) available
