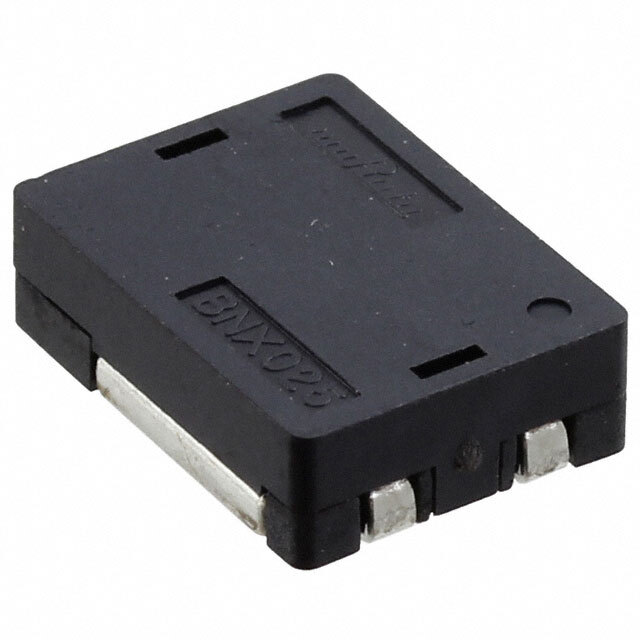

Same model may have multiple batches, images only for reference.
BNX023-01B Murata Electronics North America – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BNX023-01B

Part No BNX023-01B
Manufacturer Murata Electronics North America
Catalog EMI/RFI Filters (LC, RC Networks)
Description LC EMI Filter 5th Order Low Pass 2 Channel C = 1µF 15 A 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Electronics
Series EMIFIL®, BNX
Packaging Strip
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 2
Attenuation Value 35dB @ 1MHz ~ 1GHz
Resistance - Channel (Ohms) 0.00043
Current 15 A
Values C = 1µF
ESD Protection No
Temperature Range - Operating -40°C ~ 125°C
Applications Data Lines for Mobile Devices
Voltage - Rated 100V
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.476" L x 0.358" W (12.10mm x 9.10mm)
Height 0.130" (3.30mm)
Base Product Number BNX0
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1481112-BNX023-01B
Ultra Librarian 3D Model Ultra Librarian BNX023-01B CAD Model
