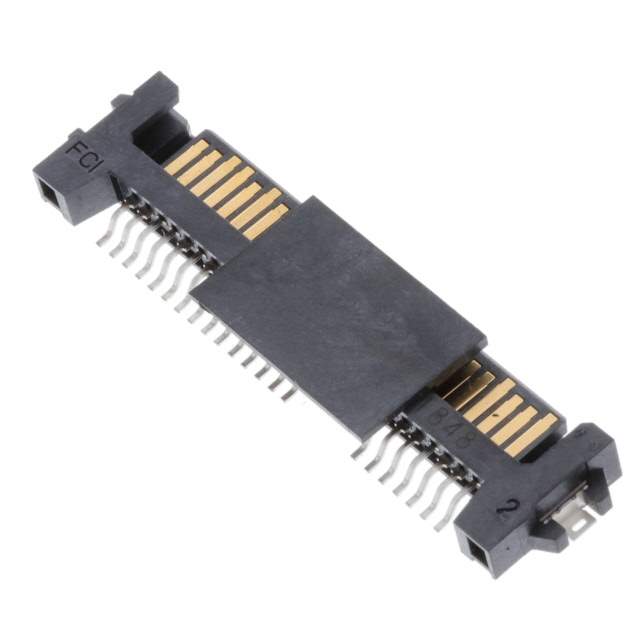

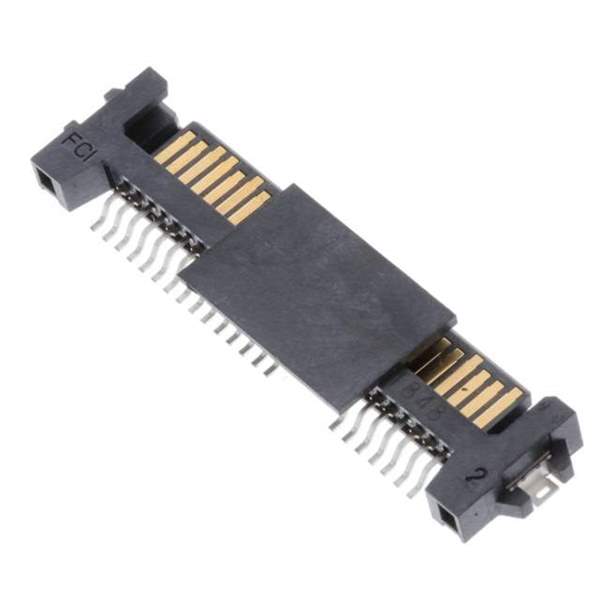

10101788-002CLF Real Image
Same model may have multiple batches, images only for reference.

10101788-002CLF

Part No 10101788-002CLF
Manufacturer Amphenol FCI
Catalog Pluggable Connectors
Description CONN SATA PLUG 22POS SLD R/A
Datasheet
10101788-002CLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol FCI
Packaging Reel package
Connector Style Plug, Shrouded
Connector Type SATA
Number of Positions 22
Mounting Surface Mount, Right Angle
Termination Solder
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 30μin (0.76μm)
Win Source Part Number 760120-10101788-002CLF
Popularity Medium
Supply and Demand Status Balance
Family Name 10101788
Introduction Date July 01, 2009
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 10101788-002CLF CAD Model

Description

The Amphenol FCI 760120-10101788-002CLF is a 22-position SATA connector in surface mount, right angle mounting style.

  • Features: Board guide, Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 30μin (0.76μm)
  • Connector Style: Plug, Shrouded
  • Family Name: 10101788
  • Halogen-Free: Compliant
  • Country of Origin: Malaysia
  • Supply and Demand Status: Balance
  • EOL Date: 2026 (Estimated)
  • Introduction Date: July 01, 2009
