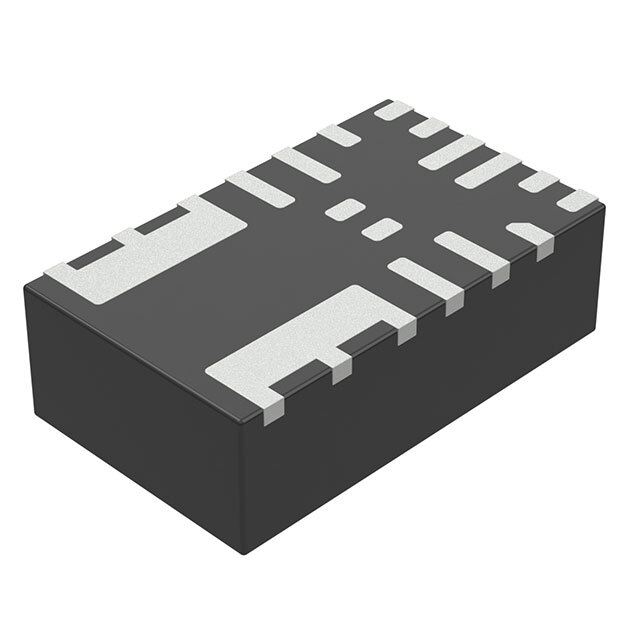

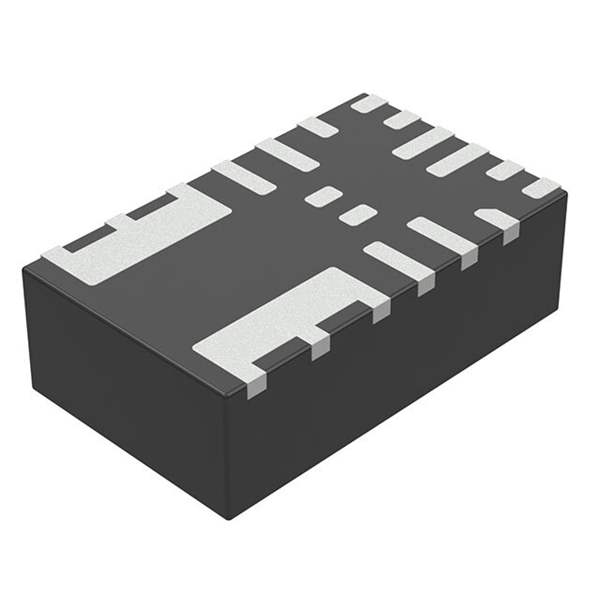

MPM3820GQV-P Monolithic Power Systems Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MPM3820GQV-P

Part No MPM3820GQV-P
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.6-6V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tape & Reel (TR);Cut Tape (CT);
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.7V
Voltage - Input (Max) 6V
Voltage - Output 1 0.6 ~ 6V
Current - Output (Max) 2A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Operating Temperature -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 20-PowerLFQFN Module
Size / Dimension 0.20" L x 0.12" W x 0.06" H (5.0mm x 3.0mm x 1.6mm)
Supplier Device Package 20-QFN (3x5)
Control Features Enable, Active High
Ultra Librarian 3D Model Ultra Librarian MPM3820GQV-P CAD Model

Description

The Monolithic Power Systems Inc. MPM3820GQV-P is a non-isolated PoL module used in power supplies for ITE (commercial) applications.

  • Maximum Output Current: 2A
  • Voltage Input Range: 2.7V to 6V
  • Output Voltage: Adjustable from 0.6V to 6V
  • Package: 20-PowerLFQFN Module
  • Operating Temperature: -40°C to 125°C
  • Features: OCP, OTP, and UVLO
  • Enable: Active High Control
