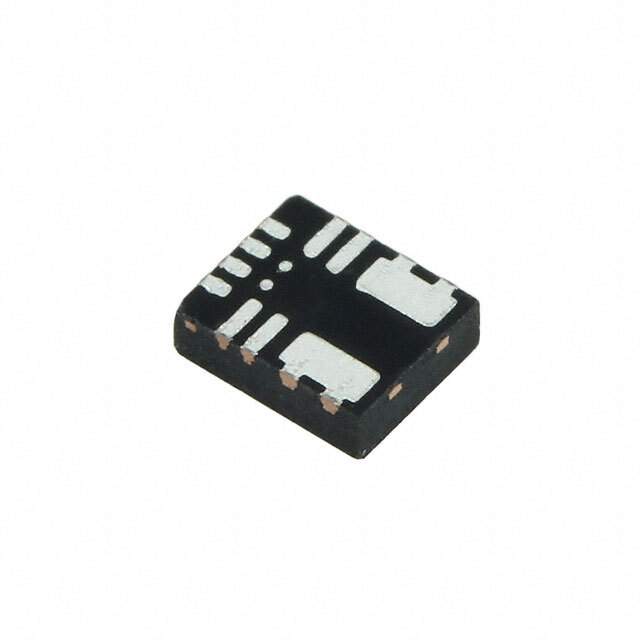

MPM3810GQB-12-P Real Image
Same model may have multiple batches, images only for reference.

MPM3810GQB-12-P

Part No MPM3810GQB-12-P
Manufacturer Monolithic Power Systems Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 1.2V 1.2A / 6V Input, 1.2A Module Synchronous Step-Down Converter with Integrated Inductor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Packaging Reel
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.5V
Maximum Input Voltage 6V
Voltage - Output 1 1.2V
Current - Output (Maximum) 1.2A
Applications ITE (Commercial)
Features OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 12-PowerVFQFN Module
Dimension 0.12" L x 0.10" W x 0.04" H (3.0mm x 2.5mm x 0.9mm)
Supplier Device Package 12-QFN (3x2.5)
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808645-MPM3810GQB-12-P
Ultra Librarian 3D Model Ultra Librarian MPM3810GQB-12-P CAD Model

Description

The Monolithic Power Systems Inc. non-isolated PoL module is a high-quality power supply.

  • Output Voltage: 1.2V
  • Output Current: 1.2A
  • Input Voltage: 2.5V to 6V
  • Applications: Commercial ITE
  • Protections: OCP, OTP, UVLO
  • Mounting: SMD
  • Package: 12-QFN (3x2.5)
  • Temperature Range: -40°C to 125°C
  • Manufacturer Pack Quantity: 500
