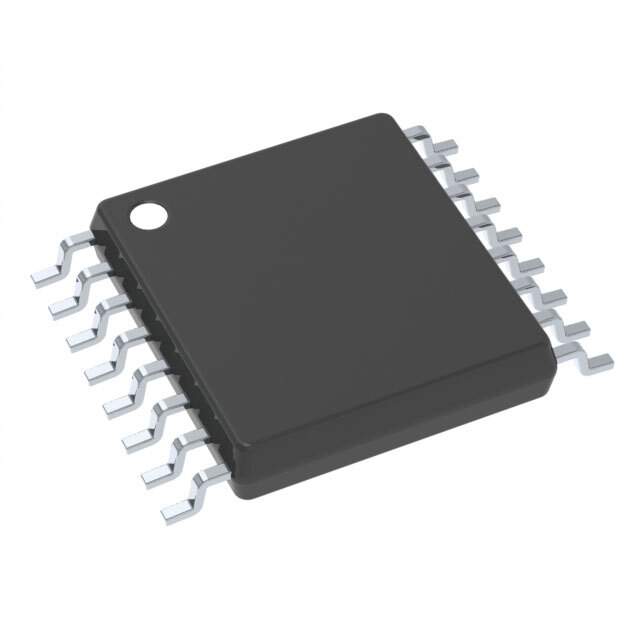

MP6505DM-LF-Z Real Image
Same model may have multiple batches, images only for reference.

MP6505DM-LF-Z

Part No MP6505DM-LF-Z
Manufacturer Monolithic Power Systems Inc.
Catalog PMIC - Motor Drivers, Controllers
Description IC MOTOR DRIVER 4.5V-16V 16TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Monolithic Power Systems Inc.
Packaging Reel
Motor Type - AC, DC Brushless DC (BLDC)
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology Power MOSFET
Applications Use For General
Current - Output 400mA
Supply Voltage (V) 4.5V ~ 16V
Voltage - Load 4.5V ~ 16V
Temperature Range - Operating -40°C ~ 125°C
Mounting Style SMD
Manufacturer Package 16-TSSOP
Supplier Device Package 16-TSSOP
Manufacturer Pack Quantity 2,500
MSL Level 2 (1 Year)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 807670-MP6505DM-LF-Z
Ultra Librarian 3D Model Ultra Librarian MP6505DM-LF-Z CAD Model

Description

The MP6505DM-LF-Z by Monolithic Power Systems Inc. is a power MOSFET driver with a half bridge (2) output configuration.

  • Current Output: 400mA
  • Supply Voltage Range: 4.5V to 16V
  • Applications: General applications and brushless DC (BLDC) motors
  • Package: 16-TSSOP
  • Operating Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 2,500
