Same model may have multiple batches, images only for reference.

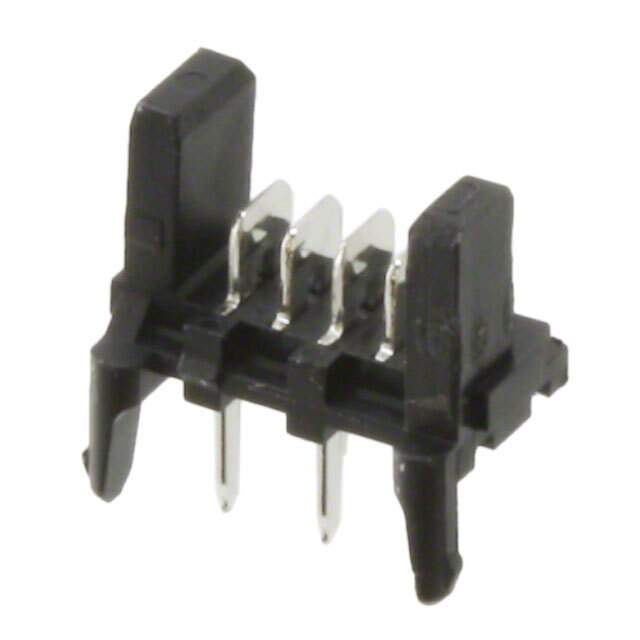

90325-0004 Real Image
Same model may have multiple batches, images only for reference.

90325-0004

Part No 90325-0004
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn IDC Connector M 4 POS 1.27mm IDT RA Cable Mount T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Blade Pin
Contact Material Brass
Contact Plating Tin
Contact Resistance 15 mΩ
Country of Origin MY
Current Rating 1.2 A
Depth 5.98 mm
Flammability Rating UL94 V-0
Gender Male
Housing Color Black
Housing Material Polyester
Lead Free Yes
Lead Pitch 1.27 mm
Length 9.32 mm
Material Polyester
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 4
Number of Contacts 4
Number of Pins 4
Number of Poles 4
Number of Positions 4
Number of Rows 1
Orientation Vertical
Pitch 1.27 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Solder
Voltage Rating 250 V
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Width 3.81 mm
Wire/Cable Gauge 26 AWG
Working Voltage 250 V
Win Source Part Number 1038071-90325-0004
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 90325-0004 CAD Model

Description

The Molex 1038071-90325-0004 is a 4-position vertical blade pin connector.

  • Positions: 4
  • Orientation: Vertical
  • Type: Blade Pin
  • Pitch: 1.27mm
  • Current Rating: 1.2A
  • Contact Material: Brass
  • Contact Resistance: 15mΩ
  • Voltage Rating: 250V
  • Maximum Operating Temperature: 105 °C
  • Mount: Through-Hole
  • Housing Material: Polyester
  • RoHS Compliant: Yes
  • Suitable for: Various Applications
