Same model may have multiple batches, images only for reference.

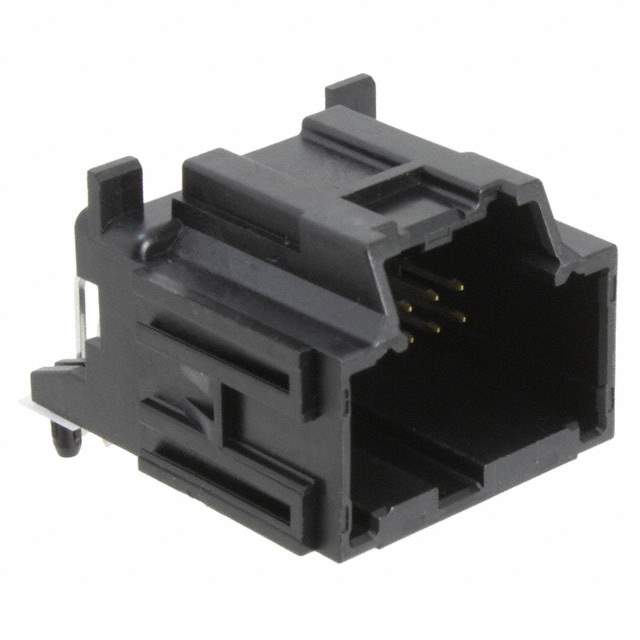

34691-0160 Real Image
Same model may have multiple batches, images only for reference.

34691-0160

Part No 34691-0160
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Power HDR 16 POS 3mm Solder ST Thru-Hole 16 Terminal 1 Port Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Rectangular
Contact Material Brass
Contact Plating Tin
Country of Origin MX
Current Rating 10 A
Depth 31.89 mm
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 22.05 mm
Housing Material Thermoplastic
Maximum Operating Temperature 100 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 16
Number of Contacts 16
Number of Positions 16
Number of Rows 2
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Termination Through Hole
Voltage Rating 500 V
Voltage Rating (DC) 500 V
Width 28.96 mm
Win Source Part Number 981622-34691-0160
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 34691-0160 CAD Model

Description

The Molex 981622-34691-0160 is a rectangular connector with 16 male pins and a through hole termination.

  • Pins: 16 (Male)
  • Termination: Through Hole
  • Pitch: 2.54mm
  • Rows: 2
  • Maximum Operating Temperature: 100 °C
  • Voltage Rating: 500V
  • Current Rating: 10A
  • Contact Material: Brass
  • Contact Plating: Tin
  • Halogen Free: Yes
  • Low Halogen: Yes
  • RoHS Regulations: Compliant
  • Supply and Demand Status: Shortage
