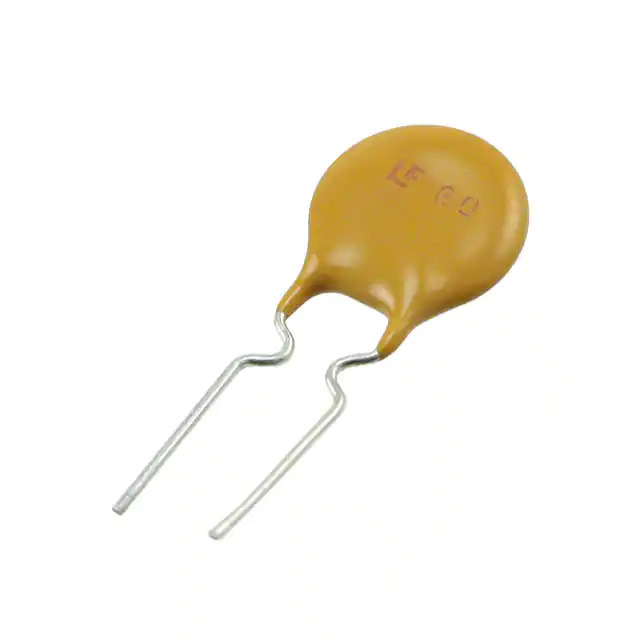

Same model may have multiple batches, images only for reference.

60R075XPR

Name: 60R075XPR
Brand: Littelfuse Inc.
SKU: 1361623
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	60R075XPR
Manufacturer	Littelfuse Inc.
Catalog	PTC Resettable Fuses
Description	PTC RESET FUSE 60V 750MA RADIAL / Polymeric PTC Resettable Fuse 60V 750 mA Ih Through Hole Radial, Disc
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - PTC Resettable Fuses
Mfr	Littelfuse Inc.
Series	POLY-FUSE®, 60R
Product Status	Active
Type	Polymeric
Voltage - Max	60V
Current - Hold (Ih) (Max)	750 mA
Current - Trip (It)	1.5 A
Current - Max	40 A
Time to Trip	6.3 s
Resistance - Initial (Ri) (Min)	250 mOhms
Resistance - Post Trip (R1) (Max)	600 mOhms
Temperature Range - Operating	-40°C ~ 85°C
Ratings	-
Mounting Type	Through Hole
Package / Case	Radial, Disc
Size / Dimension	0.402" Dia x 0.122" T (10.20mm x 3.10mm)
Height - Seated (Max)	0.591" (15.00mm)
Thickness (Max)	-
Lead Spacing	0.201" (5.10mm)
Approval Agency	cURus, TUV
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.40.8070
Win Source Part Number	1361623-60R075XPR
Ultra Librarian 3D Model	Ultra Librarian 60R075XPR CAD Model

Alternative Products

Description

The 1361623-60R075XPR is a polymeric PTC resettable fuse from Littelfuse Inc.

Manufacturer: Littelfuse Inc.
Series: POLY-FUSE® 60R
Operating Temperature Range: -40°C to 85°C
Maximum Current Rating: 40 A
Maximum Voltage Rating: 60V
Trip Current: 1.5 A
Time to Trip: 6.3 seconds
Initial Resistance: 250 mOhms
Post-Trip Resistance: 600 mOhms
Package Type: Radial, Disc
Mounting Type: Through Hole
Approvals: cURus and TUV
REACH: Compliant
ECCN: EAR99
