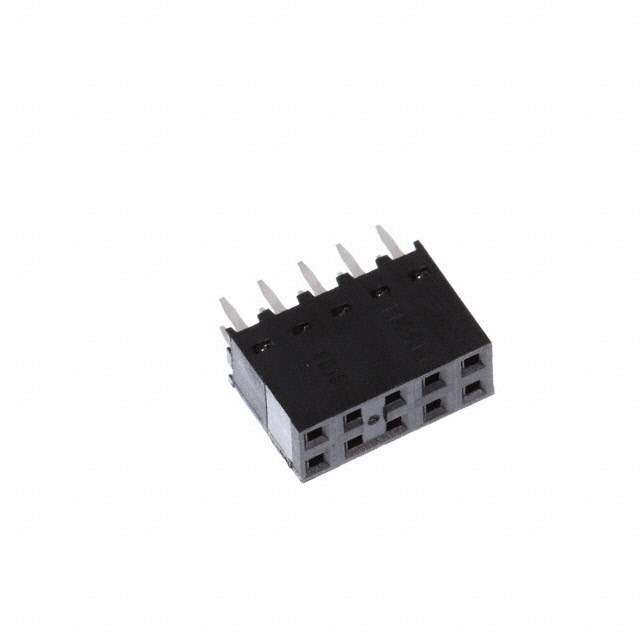

0901512210

Get a Quote

Part No	0901512210
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 10POS 0.1 GOLD PCB / 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Molex
Series	C-Grid III 90151
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.114" (2.90mm)
Temperature Range - Operating	-55°C ~ 105°C
Contact Finish - Post	Tin
Current Rating (Amps)	3A
Voltage Rating	350V
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Insulation Material	Polyester, Glass Filled
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	118.1µin (3.00µm)
Base Product Number	90151
Standard Package	44
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1339779-0901512210
Ultra Librarian 3D Model	Ultra Librarian 0901512210 CAD Model

Description

The C-Grid III 90151 series female socket receptacle connector is a 2-row connector with 10 positions.

Number of Positions: 10
Termination: Solder
Fastening Type: Push-Pull
Material: Phosphor Bronze
Voltage Rating: 350V
Contact Finish: Gold
Contact Finish Thickness (Mating): 15.0μin (0.38μm)
Contact Finish Thickness (Post): 118.1μin (3.00μm)
Insulation Material: Polyester, Glass Filled
Package: Tube
Design: Shrouded 4-Wall
Contact Shape: Square
Temperature Range: -55°C to 105°C
Current Rating (Maximum): 3A
