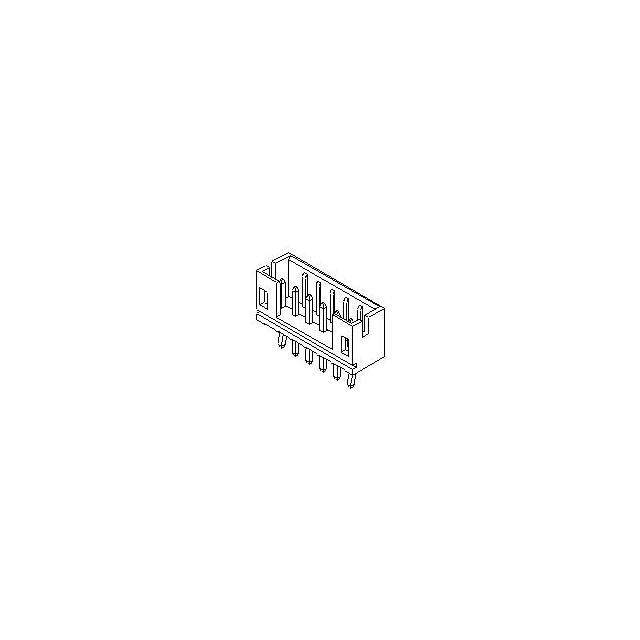

89400-0520

Part No 89400-0520
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description PCB HDR 2MM PITCH STRGT KINKED
Datasheet
89400-0520 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 5
Number of Positions Loaded All
Number of Rows 1
Mounting Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.238" (6.05mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 50μin (1.27μm)
Contact Finish - Post Tin
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Contact Finish Thickness - Post 50μin (1.27μm)
Win Source Part Number 1010469-89400-0520
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 89400-0520 CAD Model

Description

The Molex Connector Corporation 89400-0520 is a header connector manufactured by Molex Connector Corporation.

  • Positions: 5
  • Contact Type: Male Pin
  • Packaging: Bulk
  • Mounting: Through-Hole
  • Pitch-Mating: 0.079" (2.00mm)
  • Supply and Demand: Sufficient
  • Shrouded: 4 Wall
  • Contact Length of Post: 0.134" (3.40mm)
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Insulation Color: Natural
