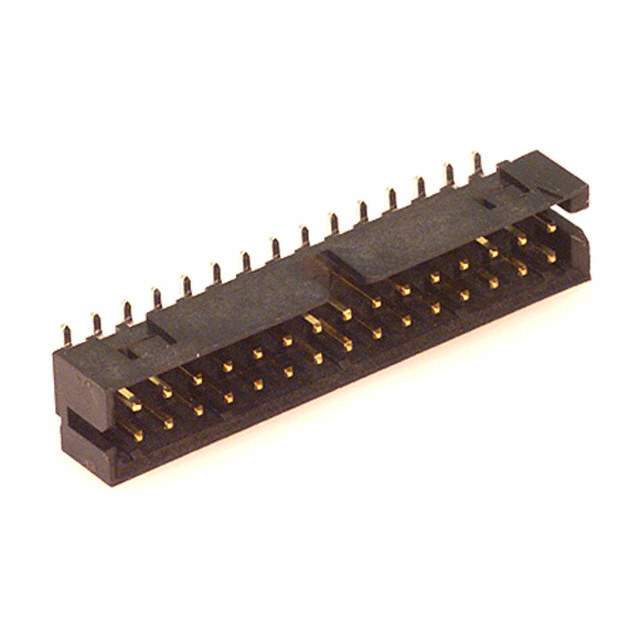

0878323014 Real Image
Same model may have multiple batches, images only for reference.

0878323014

Part No 0878323014
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 2MM / Connector Header Surface Mount 30 position 0.079" (2.00mm)
Datasheet
0878323014 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot, Pick and Place
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 087832
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 0878-32-3014,87832-3014,878323014,087832-3014
Standard Package 500
Win Source Part Number 1332902-0878323014
Ultra Librarian 3D Model Ultra Librarian 0878323014 CAD Model

Description

The Molex 1332902-0878323014 is a header connector with a latch holder fastening type and a solder termination.

  • Fastening Type: Latch holder
  • Termination: Solder
  • Pitch: 0.079" (2.00mm)
  • Positions: 30
  • Rows: 2
  • Housing Material: Polyamide (PA), nylon, glass filled
  • Insulation Color: Black
  • Compliance: RoHS3 compliant
  • Mounting Style: Surface mount
