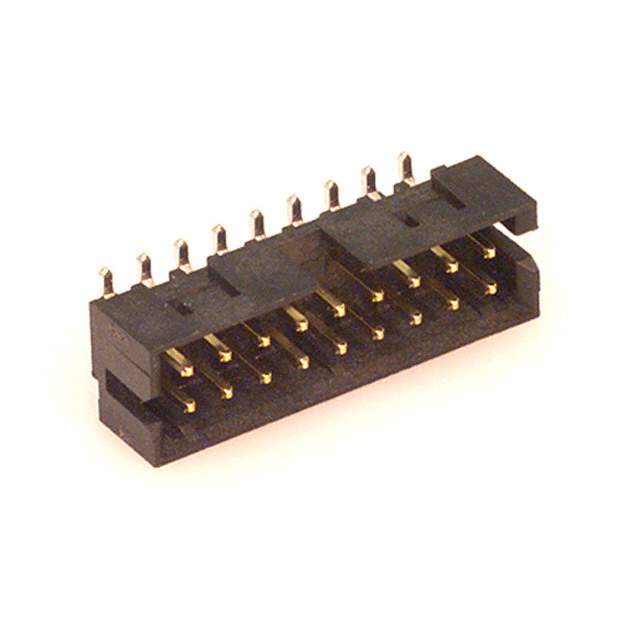

0878321820 Real Image
Same model may have multiple batches, images only for reference.

0878321820

Part No 0878321820
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 18POS 2MM / Connector Header Surface Mount 18 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Surface Mount
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.141" (3.60mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide, Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8µin (1.90µm)
Applications Automotive, General Purpose, Telecommunications
Base Product Number 87832
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 87832-1820-TB26,WM18643,878321820,WM18643-NDR,87832-1820
Standard Package 26
Win Source Part Number 1332370-0878321820
Ultra Librarian 3D Model Ultra Librarian 0878321820 CAD Model

Description

The Molex 18-Position Male Pin Header Connector is a rectangular connector with a solder termination and latch holder fastening type.

  • Number of Positions: 18
  • Pin Gender: Male
  • Termination: Solder
  • Fastening Type: Latch holder
  • Rows: Two
  • Insulation Material: Polyester and glass-filled
  • Insulation Color: Black
  • Pitch: 0.079" (2.00mm)
  • Mating Cycle: 500
  • Design: Shrouded 4-wall
  • Features: Board guide and keying slot
  • Operating Temperature Range: -40°C to 105°C
  • Standard Package: 26
  • RoHS3 Compliant: Yes
