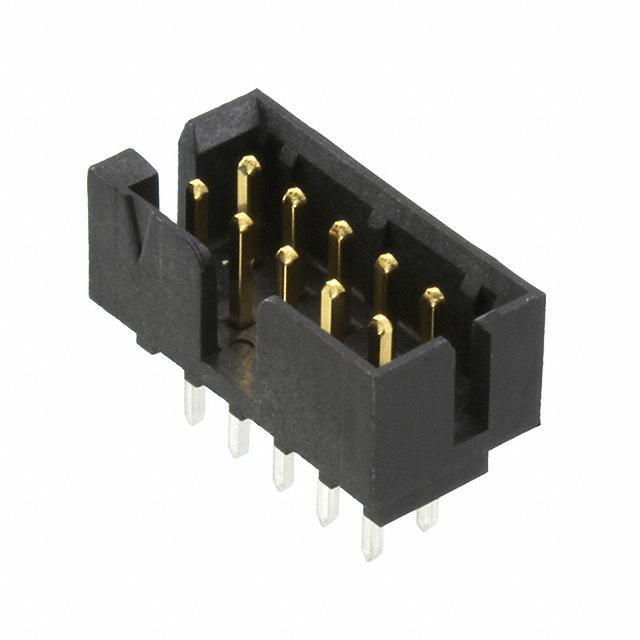

878311020 Molex, LLC
Same model may have multiple batches, images only for reference.

878311020

Part No 878311020
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 10POS 2MM VERT GOLD
Datasheet
878311020 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Milli-Grid 87831
Packaging Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 10
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Mounting Style Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.141" (3.60mm)
Contact Length - Post 0.098" (2.50mm)
Insulation Height 0.252" (6.40mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Keying Slot
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 74.8μin (1.90μm)
Applications Automotive, General Purpose, Telecommunications
Win Source Part Number 766370-878311020
Popularity Medium
Supply and Demand Status Balance
Family Name 87831
Introduction Date January 01, 2000
Country of Origin Indonesia, Indonesia
Halogen Free Not Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 878311020 CAD Model

Description

The Milli-Grid 87831 series header connector is a male pin type connector with through-hole mounting style.

  • Positions: 10
  • Rows: 2
  • Keying Slot: Yes
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Gold
  • Contact Finish - Post: Tin
  • Insulation Material: Polyamide (PA), Nylon, Glass-Filled
  • Insulation Color: Black
  • Pitch - Mating: 0.079 inches (2.00mm)
  • Insulation Height: 0.252 inches (6.40mm)
  • Applications: Automotive, General Purpose, Telecommunications
  • Material Flammability: UL94 V-0
  • Family Name: 87831
  • Packaging: Tube
  • Fastening Type: Push-Pull
  • Estimated EOL Date: 2028
