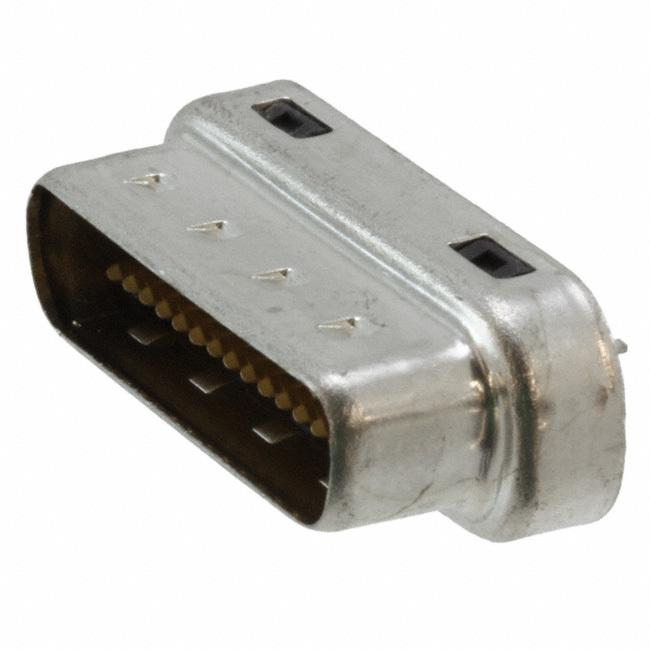

750001028 Molex, LLC
Same model may have multiple batches, images only for reference.

750001028

Part No 750001028
Manufacturer Molex, LLC
Catalog D - SUB, D - SHAPED connectors
Description CONN D-TYPE PLUG 28POS VERT SLDR
Datasheet
750001028 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series PCI Express, TDP
Packaging Tube
Connector Style D-Type
Connector Type Plug, Male Pins
Number of Positions 28
Number of Rows 2
Shell Size, Connector Layout 0.050 Pitch x 0.065 Row to Row
Contact Type Signal
Mounting Style Through Hole
Termination Solder
Features Grounding Indents, Shielded
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness 15μin (0.38μm)
Material Flammability Rating UL94 V-0
Operating Temperature Range -20°C ~ 85°C
Voltage Rating 40V
Current Rating 1.5A
Color Black
Housing Material Polymer, Glass Filled
Contact Material Copper Alloy
Win Source Part Number 766112-750001028
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 750001028 CAD Model

Description

This Molex LLC PCI Express TDP connector.

  • Type: Through hole
  • Positions: 28
  • Rows: 2
  • Pin Type: Male
  • Shielding: Shielded
  • Grounding: Grounding indents
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15μin (0.38μm)
  • Supply and Demand Status: Limited
  • Operating Temperature: -20°C to 85°C
  • Voltage Rating: 40V
  • Current Rating: 1.5A
  • Housing Material: Polymer, glass filled
  • Material Flammability: UL94 V-0
  • Shell Material and Finish: Steel, tin plated
  • Shell Size: 0.050 pitch x 0.065 row to row
