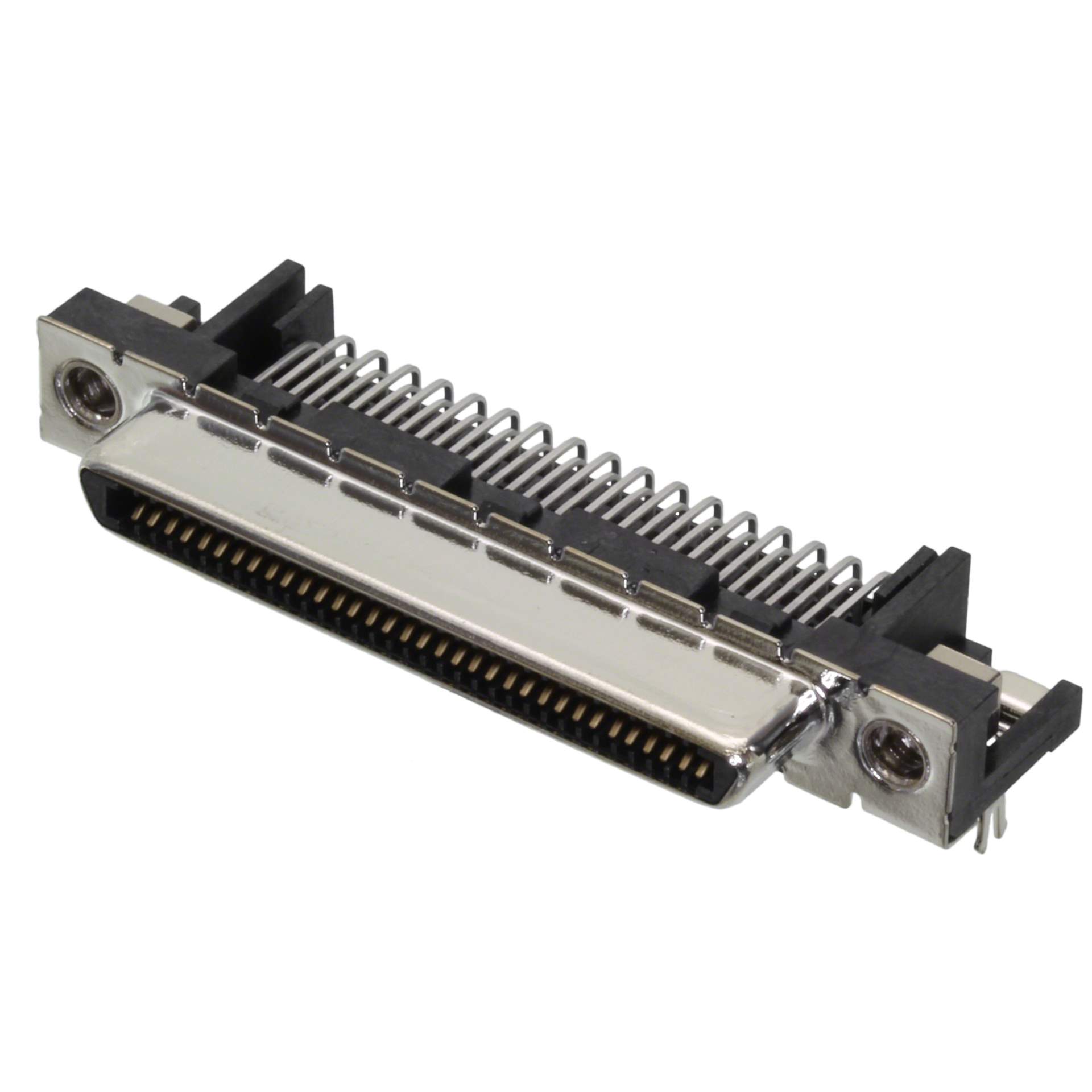

0714300013 Real Image
Same model may have multiple batches, images only for reference.

0714300013

Part No 0714300013
Manufacturer Molex, LLC
Catalog D - SUB, D - SHAPED connectors
Description CONN VHDCI RCPT 68POS R/A SOLDER / 68 Position Receptacle Connector SCSI+, VHDCI Through Hole, Right Angle Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr Molex
Series Ultra+ VHDCI 71430
Package Tube
Product Status Obsolete
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 68
Number of Rows 2
Mounting Type Through Hole, Right Angle
Termination Solder
Flange Feature Housing/Shell (M2.6)
Type SCSI+, VHDCI
Features Board Lock, Shielded
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 071430
Standard Package 273
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341248-0714300013
Ultra Librarian 3D Model Ultra Librarian 0714300013 CAD Model

Description

The Molex 1341248-0714300013 is a VHDCI SCSI+ connector with 68 positions designed for use in high-density applications.

  • Connector Type: Receptacle
  • Mounting Style: Right Angle, Through Hole
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Current Rating: 13A
  • Series: Ultra+ VHDCI 71430
  • Packaging: Tube
  • Standard Package: 273
  • RoHS3 Compliant: Yes
