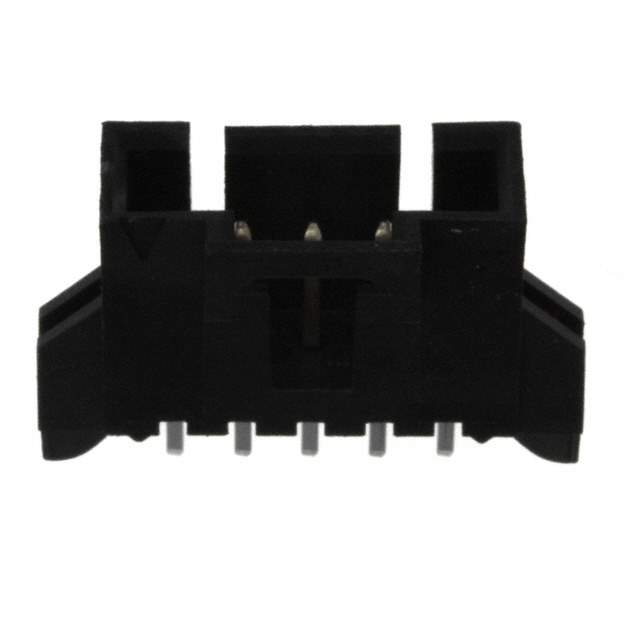

0705450039

Get a Quote

Part No	0705450039
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 5POS 2.54MM / Connector Header Through Hole 5 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.470" (11.94mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Features	Board Guide
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	250V
Contact Finish Thickness - Post	74.8µin (1.90µm)
Applications	Automotive, General Purpose, Industrial, Medical
Base Product Number	070545
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	705450039,70545-0039,A-70545-0039,WM4145
Standard Package	1
Win Source Part Number	1332800-0705450039
Ultra Librarian 3D Model	Ultra Librarian 0705450039 CAD Model

Description

The Molex 1332800-0705450039 is a 5-position male pin header connector with a 0.100 inch (2.54mm) pitch.

Contact Material: Phosphor Bronze
Contact Plating (Mating): Gold
Contact Plating (Post): Tin
Mounting: Through-Hole
Fastening: Latch Holder
Shrouded: 4 Walls
Contact Shape: Square
Voltage Rating: 250V
Current Rating: Not Specified
Insulation Material: Polyester and Glass-Filled
Applications: Automotive, General Purpose, Industrial, and Medical
Operating Temperature: -40°C to 105°C
RoHS3 Compliant: Yes
Packaging: Tube
