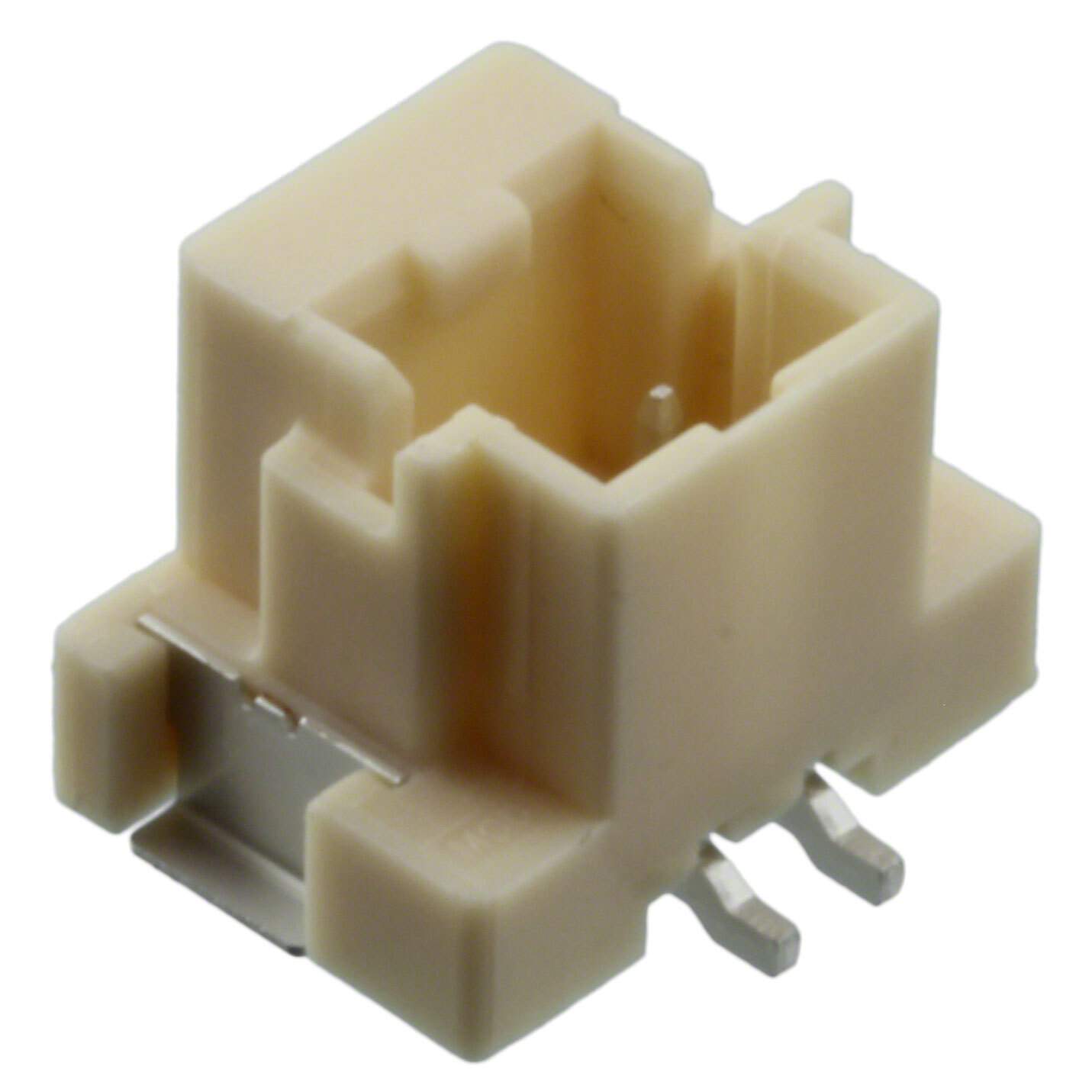

5600200220 Real Image
Same model may have multiple batches, images only for reference.

5600200220

Part No 5600200220
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 2POS 2MM
Datasheet
5600200220 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 26 Weeks
Features Connector Header Surface Mount 2 position 0.079" (2.00mm)
Manufacturer Molex, LLC
Series DuraClik 560020
Package Reel - TR
Mounting Surface Mount
Family Name 560020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM10862DKR, WM10862CT, 05600200220, WM10862TR, 560020-0220, 5600200220-ND
Quantity per package 650
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907471-5600200220
Ultra Librarian 3D Model Ultra Librarian 5600200220 CAD Model

Description

The Molex DuraClik 560020 series is a connector header surface mount that has 2 positions and a pitch of 0.079 inches (2.00mm).

  • Series: 560020
  • Family: 560020
  • Package: reel - TR
  • Mounting: surface mount
  • Supply and Demand Status: balanced
  • MSL Level: 1 (unlimited)
  • Estimated production lead time: 26 weeks
  • REACH status: unaffected
  • HTSUS: 8536.69.4040
  • Other part numbers: WM10862DKR, WM10862CT, 05600200220, WM10862TR, 560020-0220, 5600200220-ND
