Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Comchip Technology
Package Tape & Reel
Product Status Obsolete
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 20A
Voltage - Forward (Vf) (Max) @ If 930 mV @ 20 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 200 V
Mounting Type Surface Mount
Package / Case TO-277, 3-PowerDFN
Supplier Device Package TO-277 (Z3)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number CDBZ320200
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1338627-CDBZ320200-HF
Ultra Librarian 3D Model Ultra Librarian CDBZ320200-HF CAD Model

Description

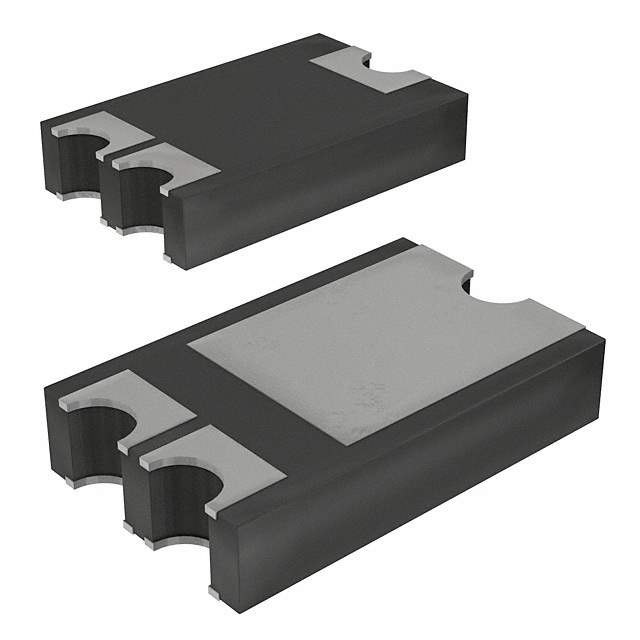

The Comchip Technology CDBZ320200-HF is a Schottky rectifier diode with a maximum reverse voltage of 200 V and an average rectified current of 20 A.

  • Maximum Reverse Voltage: 200 V
  • Average Rectified Current: 20 A
  • Forward Voltage @ Current: 930 mV @ 20 A
  • Reverse Leakage Current @ Voltage: 100 μA @ 200 V
  • Technology: Fast Recovery
  • Junction Temperature: -55°C to 150°C
  • Package/Case: TO-277, 3-PowerDFN
  • Supplier Device Package: TO-277 (Z3)
  • Packaging: Tape and Reel
  • Standard Package: 5,000 Units
