559591230

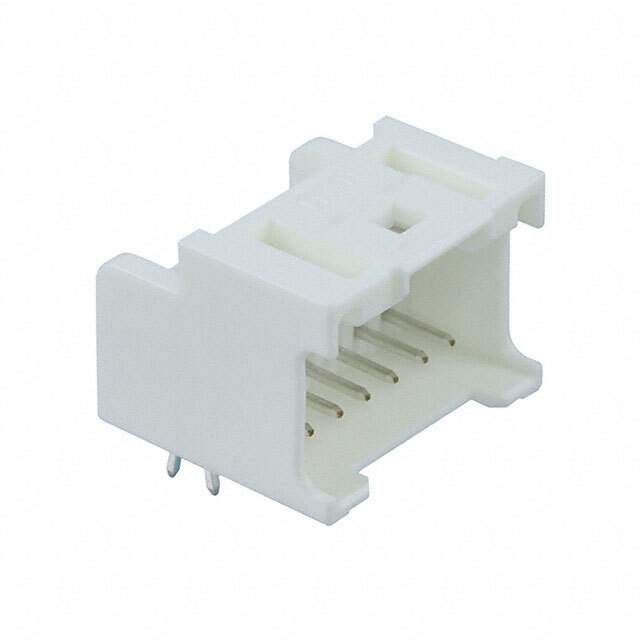

Name: 559591230
Brand: Molex, LLC
SKU: 764047
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	559591230
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	2.0 WTB DUAL CONN DIP PLG HSG
Datasheet	559591230 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Series	MicroClasp 55959
Packaging	Tray
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.197" (5.00mm)
Mounting	Through Hole, Right Angle
Termination	Kinked Pin, Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.461" (11.70mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Mated Stacking Heights	11.7mm
Applications	General Purpose, Industrial, Medical
Win Source Part Number	764047-559591230
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 559591230 CAD Model

Description

{"ProductId":702425,"FormattedDescription":"

The Molex 764047-559591230 is a board-to-cable/wire male header connector with 12 positions.

Series: MicroClasp 55959
Rows: 2
Pitch: 0.079" (2.00mm)
Termination: Kinked Pin, Solder
Current Rating: All Positions Loaded
Contact Material: Brass
Voltage Rating: -
RoHS: Yes
Contact Plating: Tin
Insulation Material: Polybutylene Terephthalate (PBT), Glass Filled
Applications: General Purpose, Industrial, Medical
