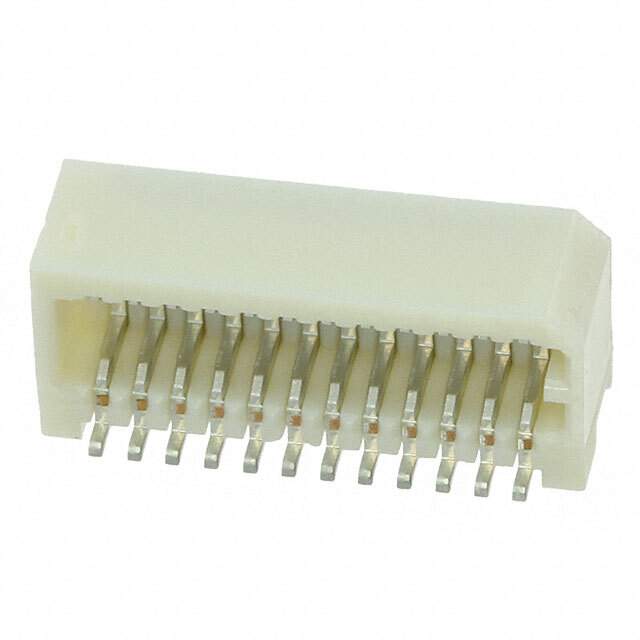

0533092470 Real Image
Same model may have multiple batches, images only for reference.

0533092470

Part No 0533092470
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HDR 24POS R/A SMD TIN / 24 Position Connector Header, Outer Shroud Contacts Surface Mount, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer Molex
Packaging Reel - TR
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.031" (0.80mm)
Number of Rows 2
Mounting Surface Mount, Right Angle
Contact Finish Tin
Contact Finish Thickness 120.0µin (3.05µm)
Height Above Board 0.185" (4.70mm)
Base Product Number 053309
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 533092470,WM8903CT,WM8903TR,53309-2470-TR250,53309-2470,WM8903DKR,053309-2470
Standard Package 1,000
Win Source Part Number 1332976-0533092470
Ultra Librarian 3D Model Ultra Librarian 0533092470 CAD Model

Description

This Molex 1332976-0533092470 connector is a rectangular array type connector with outer shroud contacts.

  • Positions: 24
  • Pitch: 0.031 inches
  • Contact Finish: Tin
  • Contact Finish Thickness: 120.0µin
  • Mounting: Surface Mountable, Right-Angle
  • Height Above Board: 0.185 inches
  • ECCN: EAR99
  • REACH: Unaffected
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Numbers: WM8903CT, WM8903TR, 53309-2470-TR250, 53309-2470, WM8903DKR, 053309-2470
