Same model may have multiple batches, images only for reference.

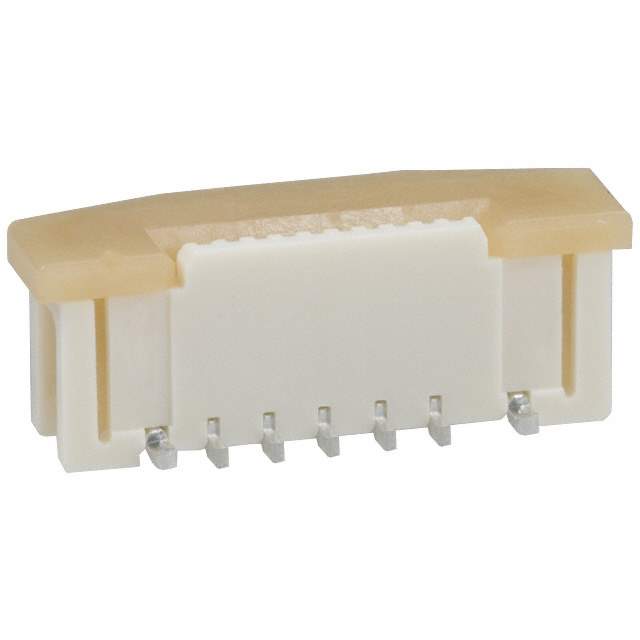

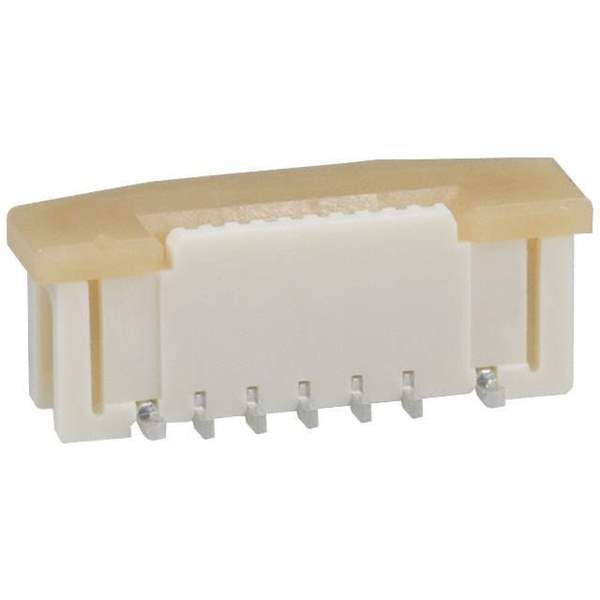

52559-1072 Real Image
Same model may have multiple batches, images only for reference.

52559-1072

Part No 52559-1072
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Easy-On FFC/FPC Connector, 0.50mm Pitch, Slider Series, Vertical, 3.90mm Height, 10 Circuits, Tin-Bismuth Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Actuator Material Polyphenylene
Contact Material Bronze
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin MY
Current Rating 500 mA
Depth 3 mm
Flammability Rating UL94 V-0
Gender Receptacle
Housing Color Natural
Housing Material Nylon
Lead Free Yes
Lead Pitch 500 µm
Length 10.7 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 10
Number of Contacts 10
Number of Poles 10
Number of Positions 10
Number of Rows 1
Orientation Vertical
Packaging Cut Tape (CT)
Pitch 500 µm
Radiation Hardening No
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Voltage Rating (DC) 50 V
Wire/Cable Type Straight
Win Source Part Number 1014923-52559-1072
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52559-1072 CAD Model

Description

The Molex, LLC FFC, FPC (Flat Flexible) connector is a low popularity electronic component with a 30 pct.

  • Popularity: 30 pct.
  • Maximum Operating Temperature: 85 °C
  • Positions: 10
  • Pitch: 500 µm
  • Package: Cut tape (CT)
  • Voltage Rating: 50 V
  • RoHS: Compliant
  • Flammability Rating: UL94 V-0
  • Orientation: Straight
  • Lead Pitch: 500 µm
