524372871 Molex, LLC

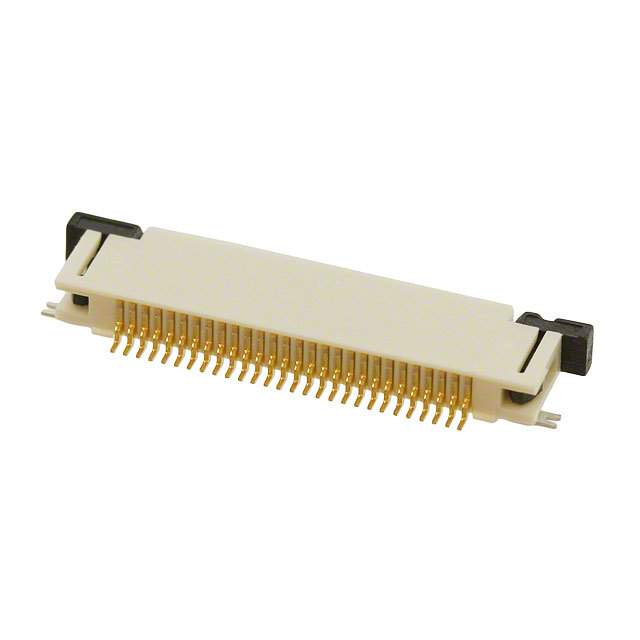

Same model may have multiple batches, images only for reference.

524372871

Part No 524372871
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 28POS 0.50MM R/A
Datasheet
524372871 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 28
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Straight, Tapered
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material Polyphenylene Sulfide (PPS), Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color White
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 052794-524372871
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 524372871 CAD Model

Description

Product Overview

The 524372871 is a top-performing component tailored for high precision and reliability. Its efficient design makes it optimal for both routine and complex applications, ensuring that users achieve peak performance levels consistently.

Features and Benefits

  • Precision architecture for accurate functionality
  • Robust and sustainable for diverse electronic settings
  • Facilitates energy-efficient operations

Applications/Projects

  • High-Precision Measurement Devices
  • Audio and Visual Equipment
  • Automated Manufacturing Solutions
  • Computer Motherboards
  • Cutting-edge Research Equipment
