Overview of Texas Instruments TPS22907YZTT

The Texas Instruments TPS22907YZTT is a high-performance, ultra-low resistance load switch designed to effectively manage power distribution in a variety of electronic devices. This compact and efficient component is part of the TPS22907 series, renowned for its ability to provide power domain isolation with minimal power loss, ensuring optimal performance in power-sensitive applications.

Key Features

• Ultra-Low On-Resistance: The TPS22907YZTT offers an exceptionally low on-resistance (RON) of typically 8.7 mΩ at a 5V gate drive, which helps to reduce power dissipation and improve overall efficiency.
• Input Voltage Range: This load switch supports an input voltage range from 1.05V to 5.5V, making it versatile for a broad range of applications, from battery-powered devices to industrial systems.
• Low Quiescent Current: It features a low quiescent current of 0.5 µA (typical) when in the on-state and 0.1 µA (typical) when in the off-state, contributing to extended battery life in portable applications.
• Fast Switching Times: The device boasts quick switching times with a turn-on time of 60 µs and turn-off time of 25 µs, allowing for responsive power management.
• Built-in Protection Features: The TPS22907YZTT is equipped with over-temperature protection and a controlled slew rate to minimize inrush current, enhancing system reliability and stability.

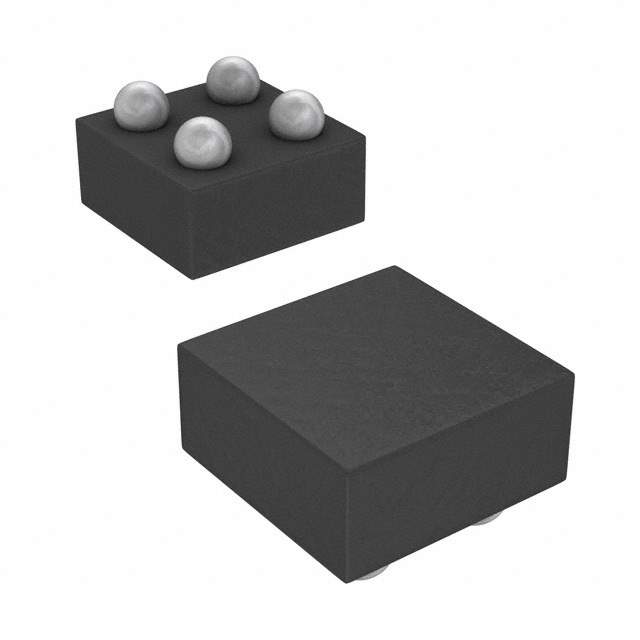

• Compact Package: It is available in a small, space-saving 6-pin YZT package, ideal for space-constrained applications.

Applications

The TPS22907YZTT load switch is suitable for a wide range of applications, including but not limited to:

• Smartphones and tablets
• Wireless peripherals and IoT devices
• Portable medical equipment
• Power management for DSP and FPGA platforms
• Energy-efficient and battery-powered devices

With its combination of low on-resistance, efficient power management, and robust protection features, the Texas Instruments TPS22907YZTT is an excellent choice for designers looking to enhance the performance and reliability of their electronic systems.
