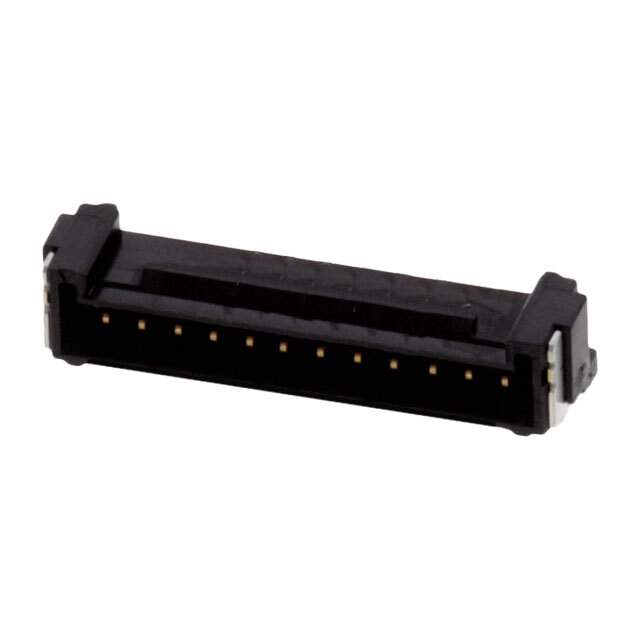

5055671281 Real Image
Same model may have multiple batches, images only for reference.

5055671281

Part No 5055671281
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 12POS 1.25MM / Connector Header Surface Mount, Right Angle 12 position 0.049" (1.25mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Reel - TR
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 12
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.154" (3.90mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Finish - Post Gold
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Pick and Place, Solder Retention
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 50VAC/DC
Contact Finish Thickness - Post 3.90µin (0.099µm)
Applications Automotive, General Purpose, Industrial
Base Product Number 505567
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 5055671281-ND,505567-1281,WM26830CT,WM26830DKR,WM26830TR
Standard Package 1,200
Win Source Part Number 1333046-5055671281
Ultra Librarian 3D Model Ultra Librarian 5055671281 CAD Model

Description

The Molex 1333046-5055671281 is a male pin header connector that is suitable for use in a variety of applications.

  • Suitable For: Rectangular Connectors
  • Pitch: 1.25mm
  • Mounting: Surface Mount, Right-Angle
  • Features: Pick and Place, Solder Retention
  • Contact Material: Brass
  • Contact Finish: Gold
  • Voltage Rating: 50VAC/DC
  • Applications: Automotive, General Purpose, and Industrial
  • RoHS3 Compliant: Yes
  • Status: Limited Supply and Demand
