Same model may have multiple batches, images only for reference.

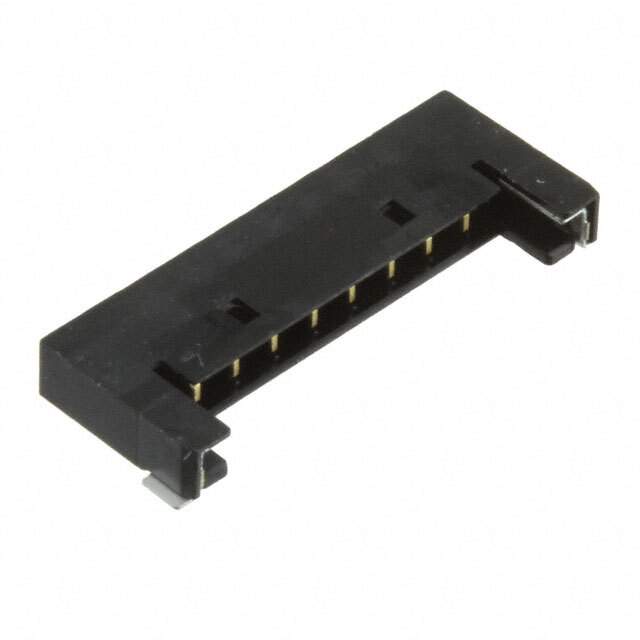

504050-0891 Real Image
Same model may have multiple batches, images only for reference.

504050-0891

Part No 504050-0891
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Modular Jack F 8 POS 1.02mm Solder ST Thru-Hole 8 Terminal 1 Port Cat 5 Box/Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Tab
Contact Gender Male
Contact Material Gold, Nickel
Contact Plating Gold
Country of Origin US
Current Rating 2 A
Depth 2 mm
Fastening Type Detent
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Height 2.15 mm
Housing Color Black
Housing Material Thermoplastic
Length 10.55 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Right Angle
Pitch 1.5 mm
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 150 V
Win Source Part Number 967021-504050-0891
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 504050-0891 CAD Model

Description

This Molex circular connector housing is a great choice for your electronics projects.

  • Product Name: Molex circular connector housing
  • Positions: 8
  • Pitch: 1.5mm
  • Material: Thermoplastic
  • Voltage Rating: 150V
  • Current Rating: 2A
  • Contact Material: Gold and nickel
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Orientation: Right-angle
  • Mount: Surface mount
  • Height: 2.15mm
  • Depth: 2mm
  • Maximum Operating Temperature: 85 °C
