Same model may have multiple batches, images only for reference.

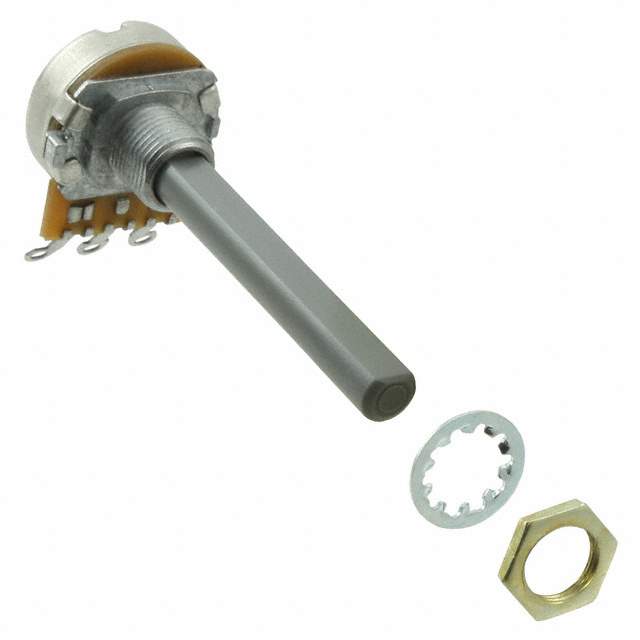

23ESA224MMF50NF Real Image
Same model may have multiple batches, images only for reference.

23ESA224MMF50NF

Part No 23ESA224MMF50NF
Manufacturer TE Connectivity
Catalog Rotary Potentiometers, Rheostats
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Potentiometers, Variable Resistors>Rotary Potentiometers, Rheostats
Mfr TE Connectivity Passive Product
Series 23, Citec
Package Bulk
Resistance (Ohms) 220k
Tolerance ±20%
Power (Watts) 0.4W
Built in Switch None
Number of Turns 1
Taper Linear
Number of Gangs 1
Adjustment Type User Defined
Temperature Coefficient 5%
Rotation 300°
Resistive Material Carbon
Termination Style Solder Lug
Actuator Type Flatted
Actuator Length 1.969" (50.00mm)
Actuator Diameter 0.250" (6.35mm)
Mounting Type Panel Mount
Size - Body Rectangular - 0.992" x 0.717" Face (25.20mm x 18.20mm)
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1316190-23ESA224MMF50NF
Ultra Librarian 3D Model Ultra Librarian 23ESA224MMF50NF CAD Model

Description

The TE Connectivity Passive Product electronic component with the Win Source Part Number 1316190-23ESA224MMF50NF is a rotary potentiometer rheostat.

  • Taper: Linear
  • Resistive Material: Carbon
  • Tolerance: ±20%
  • Actuator Type: Flatted
  • Actuator Length: 1.969" (50.00mm)
  • Resistance: 220k ohms
  • Power: 0.4W
  • Package: Bulk
  • Mounting Type: Panel mount
  • Body Size: Rectangular - 0.992" x 0.717" Face (25.20mm x 18.20mm)
