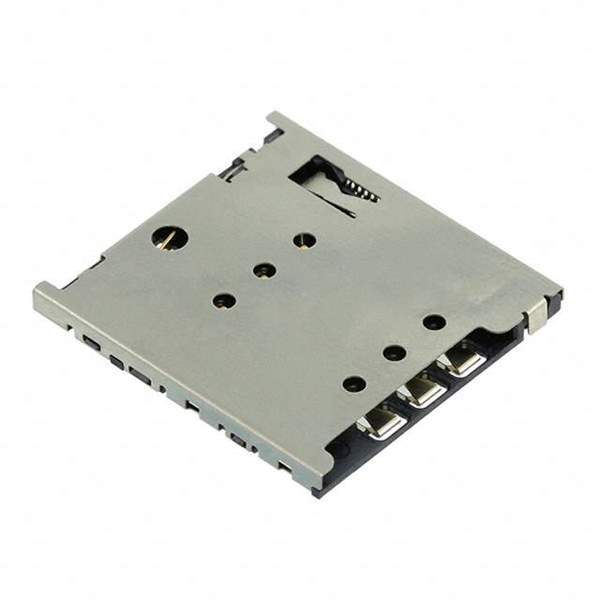

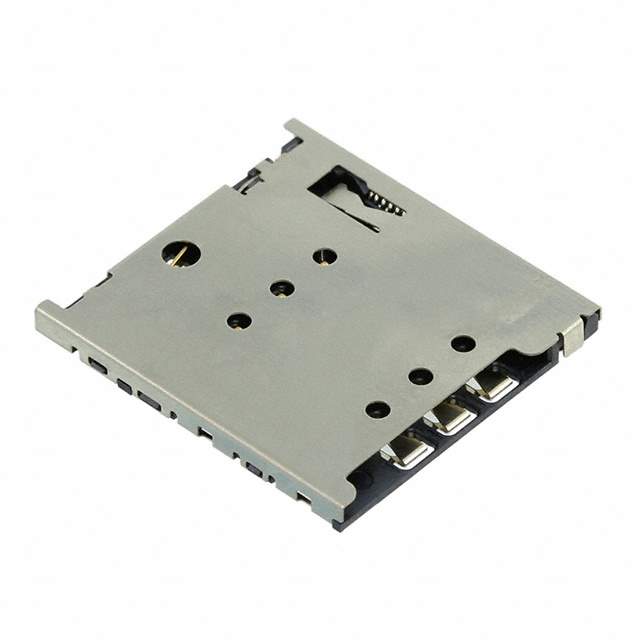

Same model may have multiple batches, images only for reference.

5039600696

Name: 5039600696
Brand: Molex, LLC
SKU: 849443
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5039600696
Manufacturer	Molex, LLC
Catalog	Memory Connectors - PC Card Sockets
Description	CONN MICRO SIMM PUSH-PUSH R/A / 8 (6 + 2) Position Card Connector Micro SIM Surface Mount, Right Angle Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Memory Connectors - PC Card Sockets
Mfr	Molex, LLC
Series	503960
Package	Tape & Reel
Product Status	Active
Card Type	Micro SIM
Number of Positions	8 (6 + 2)
Connector Type	Connector and Ejector
Insertion, Removal Method	Push In, Push Out
Mounting Type	Surface Mount, Right Angle
Features	Switch
Height Above Board	0.056" (1.42mm)
Mounting Feature	Normal, Standard - Top
Contact Finish	Gold
Contact Finish Thickness	20.0µin (0.51µm)
Base Product Number	503960
Standard Package	1,600 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849443-5039600696
Ultra Librarian 3D Model	Ultra Librarian 5039600696 CAD Model

Description

The 849443-5039600696 is a PC card socket connector designed for memory connectors manufactured by Molex, LLC.

Package: Tape & Reel
Quantity: 1,600 pieces
Card Type: Micro SIM
Features: Switch
Contact Finish: Gold
Contact Finish Thickness: 20.0µin (0.51µm)
Mounting Type: Surface Mount, Right Angle
Height Above Board: 0.056" (1.42mm)
ECCN: EAR99
MSL Level: 1 (Unlimited)
REACH Status: Unaffected
HTSUS Code: 8536.69.4040
Product Status: Active
