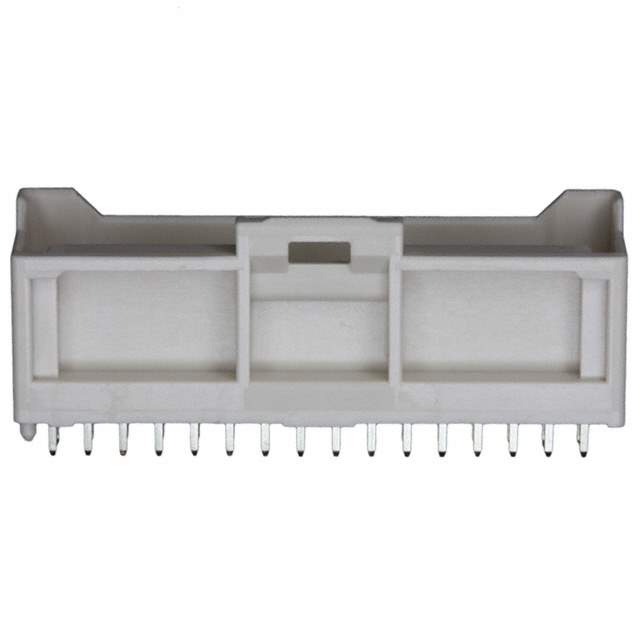

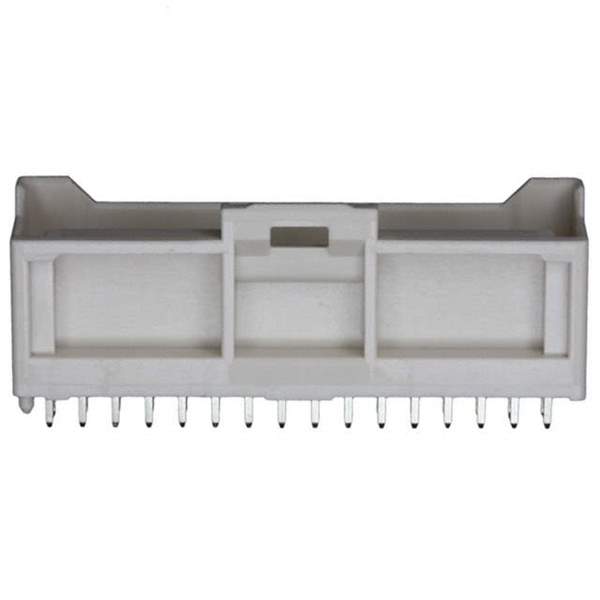

5016453220 Real Image
Same model may have multiple batches, images only for reference.

5016453220

Part No 5016453220
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series iGrid 501645
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 32
Number of Rows 2
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.472" (12.00mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number 501645
Other Names WM6083,0501645-3220-E,501645-3220,0501645-3220,05016453220-E,23-5016453220,WM6083,5016453220-E,05016453220,501645-3220-E
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293226-5016453220
Ultra Librarian 3D Model Ultra Librarian 5016453220 CAD Model

Description

The iGrid 501645 series is designed for use in a wide range of applications, including automotive, general purpose, industrial, medical, and telecommunications.

  • Series: iGrid 501645
  • Applications: Automotive, general purpose, industrial, medical, and telecommunications
  • Positions: 32
  • Positions Loaded: All
  • Rows: Two
  • Pitch: 0.079 inches
  • Design: Shrouded, four-wall
  • Insulation Material: Polyamide (PA66), nylon 6/6, glass filled
  • Contact Material: Brass
  • Contact Type: Male Pin
  • Termination: Solder
  • Fastening Type: Latch Holder
  • Mounting: Through-hole
  • Contact Finish: Tin
  • Insulation Color: Natural
  • Contact Length (Post): 0.126 inches
  • Insulation Height: 0.472 inches
  • Material Flammability Rating: UL94 V-0
  • Package: Tray
  • Manufacturer: Molex
