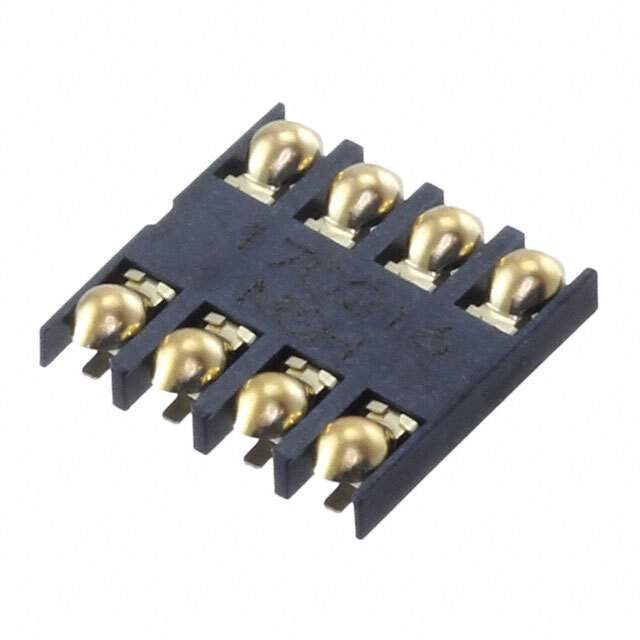

47494-0001 Real Image
Same model may have multiple batches, images only for reference.

47494-0001

Part No 47494-0001
Manufacturer Molex, LLC
Catalog Memory Connectors - Accessories
Description 2.54mm Pitch SIM Card Connector, Block Style, 8 Circuits, Housing Height 1.50mm, Lead-Free
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Country of Origin US
Current Rating 500 mA
Halogen Free Low Halogen
Housing Material Thermoplastic
Number of Circuits 8
Number of Contacts 8
Number of Rows 1
Orientation Right Angle
Pitch 2.54 mm
Plating Gold
REACH SVHC No SVHC
RoHS Compliant
Termination SMD/SMT
Voltage Rating (DC) 15 V
Win Source Part Number 1017465-47494-0001
Categories Memory Connectors - Accessories
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 47494-0001 CAD Model

Description

The Molex 1017465-47494-0001 is an 8-position thermoplastic connector with 1 row, a pitch of 2.54 mm, and is rated for 500 mA current.

  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • Orientation: Right angle
  • Approval: Approved for use in memory connectors and accessories
  • Maximum Voltage Rating: 15 V
  • SVHC Compliant: Not SVHC compliant
