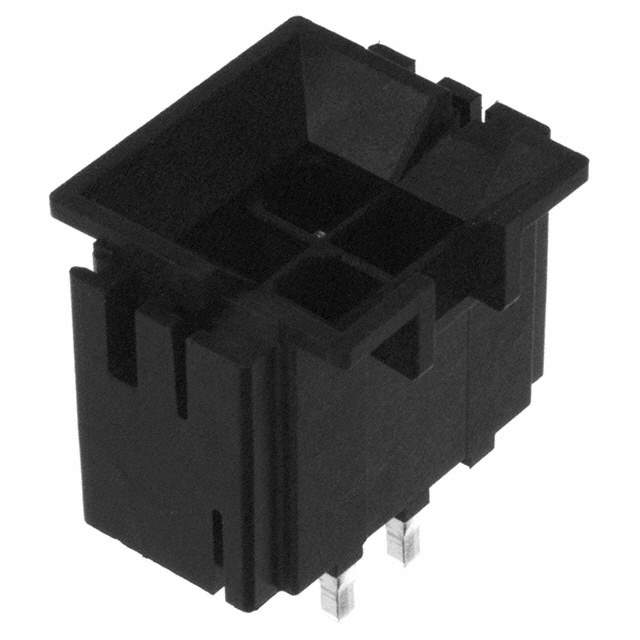

0438790022 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer Molex
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Number of Positions 4
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Through Hole
Termination Press-Fit, Solder
Fastening Type Latch Holder
Contact Length - Post 0.246" (6.25mm)
Insulation Height 0.587" (14.91mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0µin (2.54µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Blind Mating
Material Flammability Rating UL94 V-0
Insulation Color Black
Contact Finish Thickness - Post 100.0µin (2.54µm)
Applications General Purpose, Industrial, Medical, Telecommunications
Base Product Number 043879
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number WM4049INACTIVE,43879-0022,438790022,WM4049,WM4049-ND,WM17804
Standard Package 680
Win Source Part Number 1332877-0438790022
Ultra Librarian 3D Model Ultra Librarian 0438790022 CAD Model

Description

The Molex 1332877-0438790022 is a male pin header connector with 4 positions and 2 rows.

  • Features: Blind Mating
  • Termination: Press-Fit and Solder
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Voltage Rating: 600V
  • Applications: General Purpose, Industrial, Medical, Telecommunications
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40°C to 75°C
