Same model may have multiple batches, images only for reference.

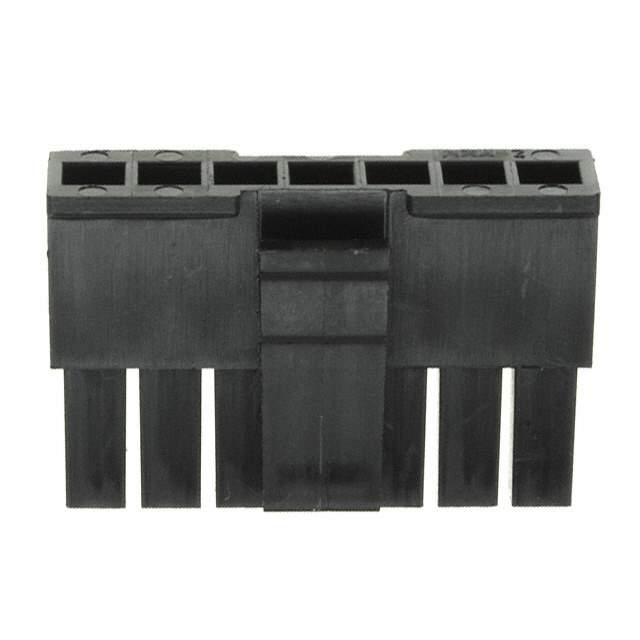

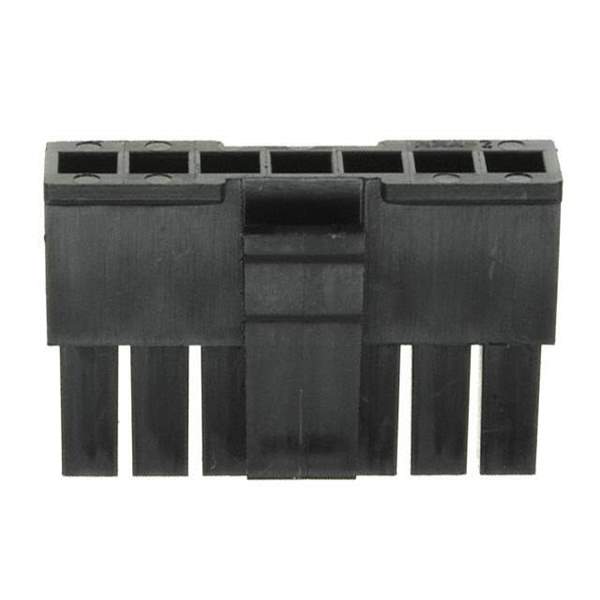

0436450700 Real Image
Same model may have multiple batches, images only for reference.

0436450700

Part No 0436450700
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN RCPT HSG 7POS 3.00MM / 7 Rectangular Connectors - Housings Receptacle Black 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Rectangular Connector Housings
Manufacturer Molex
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 7
Pitch 0.118" (3.00mm)
Number of Rows 1
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color Black
Note Contacts Not Included
Base Product Number 043645
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 436450700-P,0436450700-P,WM2405,043645-0700-P,43645-0700-P,43645-0700,043645-0700,436450700
Standard Package 2,000
Win Source Part Number 1332550-0436450700
Ultra Librarian 3D Model Ultra Librarian 0436450700 CAD Model

Description

The Molex 1332550-0436450700 is a 7-position rectangular connector housing with a pitch of 0.118" (3.00mm).

  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Pitch: 0.118" (3.00mm)
  • Fastening Type: Latch Lock
  • Mounting Type: Free Hanging (In-Line)
  • Contact Termination: Crimp
  • Insulation Material: Polybutylene Terephthalate (PBTP)
  • Shrouding: Shrouded with 4 Walls
  • RoHS3 Compliant: Yes
  • Temperature Range: -40°C to 105°C
  • Ideal For: Use in general purpose and industrial applications
