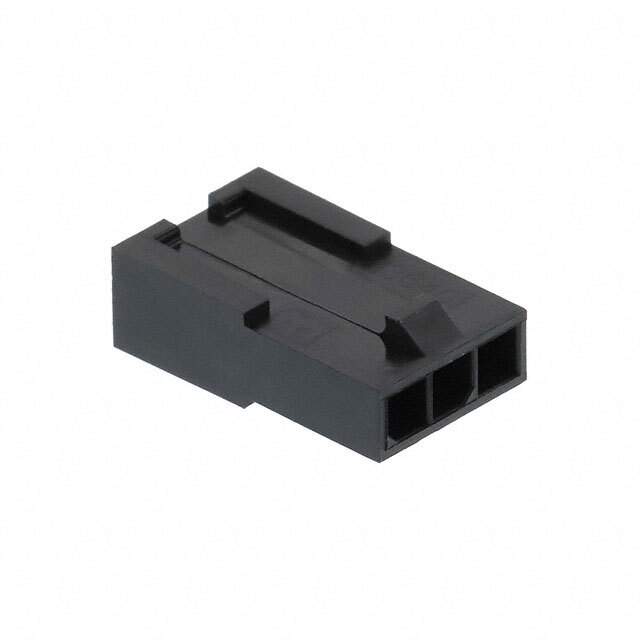

Same model may have multiple batches, images only for reference.

43640-0301

Name: 43640-0301
Brand: Molex, LLC
SKU: 960257
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43640-0301
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Micro-Fit 3.0 Plug Housing, Single Row, 3 Circuits, UL 94V-0, Low-Halogen, Black
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Connector Type	Pin, Power, Rectangular
Contact Material	Bronze
Contact Plating	Nickel
Contact Resistance	10 mΩ
Country of Origin	US
Current Rating	2.5 A
Depth	24.53 mm
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Height	3.86 mm
Housing Color	Black
Housing Material	Polyester
Lead Free	Yes
Length	9.85 mm
Material	Polyester
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	250 V
Max Voltage Rating (DC)	250 V
Min Operating Temperature	-40 °C
Mount	Free Hanging, Panel
Number of Contacts	3
Number of Pins	3
Number of Poles	3
Number of Positions	3
Number of Rows	1
Operating Supply Voltage	250 V
Orientation	Straight
Packaging	Bulk
Pitch	3 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050, 8536695050
Termination	Crimp
Voltage Rating	600 V
Voltage Rating (AC)	250 V
Working Voltage	250 V
Win Source Part Number	960257-43640-0301
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 43640-0301 CAD Model

Alternative Products

Description

This Molex LLC Pin Power Rectangular Connector is an excellent choice for applications that require a high voltage rating of 600V and a current rating of 2.5A.

Contacts: 3 contacts
Material: Bronze material
Plating: Nickel plating
Termination: Crimp termination
Housing: Black polyester material
Length: 9.85mm
Pitch: 3mm
Orientation: Straight orientation
Mounting: Free hanging and panel mounting
RoHS Compliant: Yes
Maximum Operating Temperature: 105 °C
Supply: Short supply
Popularity: Low popularity
Use: Ideal for use in circular connector housings
