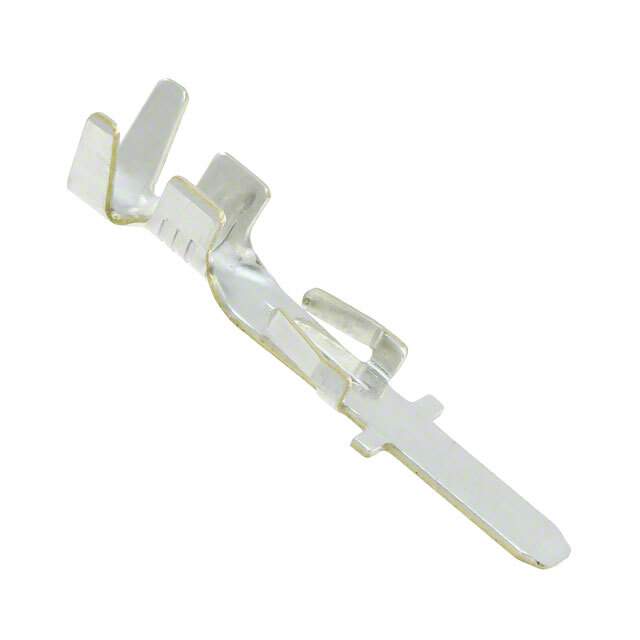

43178-2002 Real Image
Same model may have multiple batches, images only for reference.

43178-2002

Part No 43178-2002
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Crimp Terminal, Male, Tin, 20 ... 14AWG
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, Crimp, PCB, Power, Signal
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 30 mΩ
Country of Origin US
Current Rating 18 A
Depth 6.17 mm
Gender Male
Halogen Free Low Halogen
Height 5.68 mm
Housing Material Nylon
Length 27.03 mm
Max Current Rating 18 A
Maximum Operating Temperature 75 °C
Min Operating Temperature -40 °C
Mount Cable
Orientation Straight
Packaging Tape & Reel (TR)
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 600 V
Voltage Rating (AC) 100 V
Voltage Rating (DC) 600 V
Wire/Cable Diameter 4.57 mm
Wire/Cable Gauge 18 AWG
Wire Gauge (Max) 14 AWG
Wire Gauge (Min) 20 AWG
Working Voltage 600 V
Win Source Part Number 1016857-43178-2002
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43178-2002 CAD Model

Description

The Molex 1016857-43178-2002 is a male crimp PCB power signal connector with a voltage rating of 600V and a current rating of 18A.

  • Mount: Cable mount
  • Wire/Cable Gauge: 18 AWG
  • Contact Material: Brass
  • Contact Plating: Tin contact plating
  • Housing Material: Nylon housing material
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
  • Temperature Range: -40°C to 75°C
  • Maximum Operating Temperature: 75°C
