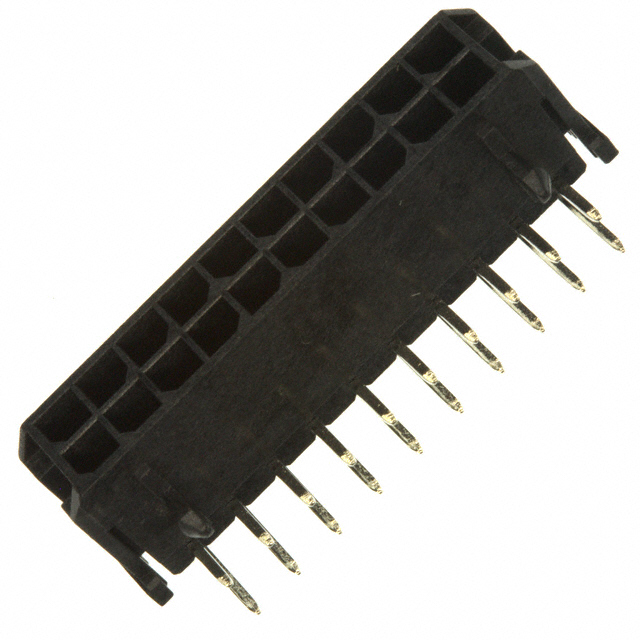

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Tray
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 20
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.118" (3.00mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.125" (3.18mm)
Insulation Height 0.290" (7.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Features Board Lock
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications General Purpose, Medical, Military, Telecommunications
Win Source Part Number 145621-430452000
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 430452000 CAD Model

Description

430452000 Terminal Block

The 430452000 terminal block is designed to provide secure and efficient electrical connections across various industrial and commercial sectors. Its high-quality material ensures durability and optimal performance.

  • Applications and Projects:
    • Control panels
    • Electrical distribution systems
    • Switchgear
    • Renewable energy setups
  • Features and Benefits:
    • Superior current carrying capacity
    • Reliable connections for critical applications
    • Quick and straightforward installation
    • Resistant to thermal and electrical stress
  • Additional Details:
    • Variety of sizes available for different use cases
    • Compliance with electrical safety regulations
