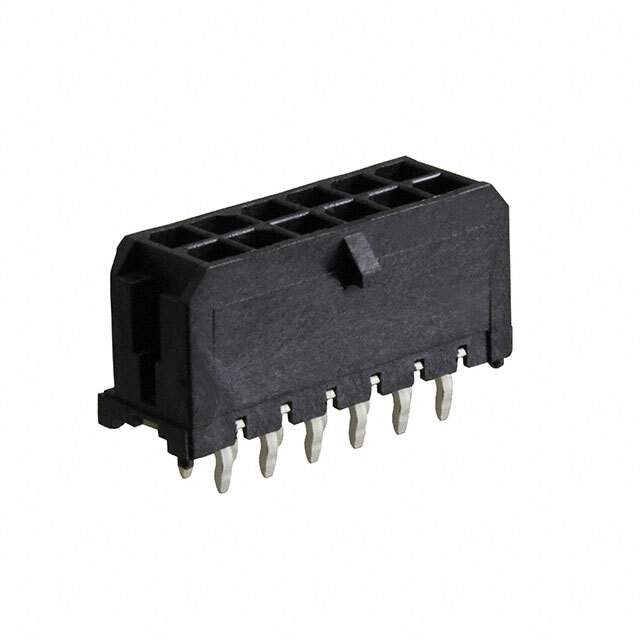

Same model may have multiple batches, images only for reference.

430451214

Name: 430451214
Brand: Molex, LLC
SKU: 535211
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	430451214
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 12POS 3MM VERT GOLD
Datasheet	430451214 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tray
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.118" (3.00mm)
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.118" (3.00mm)
Mounting	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Locking Ramp
Contact Length - Post	0.125" (3.18mm)
Insulation Height	0.390" (9.91mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30μin (0.76μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Guide
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100μin (2.54μm)
Applications	General Purpose, Medical, Military, Telecommunications
Win Source Part Number	1117962-430451214
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian 430451214 CAD Model

Description

The 43045 series header connector from Molex, LLC is a 12-position board-to-cable/wire connector with a pitch of 0.118" (3.00mm).

Features: Locking ramp, shrouded design, kinked pins
Applications: General-purpose, medical, military, and telecommunications
Mating Contacts: Gold-plated
Post Contacts: Tin-plated
