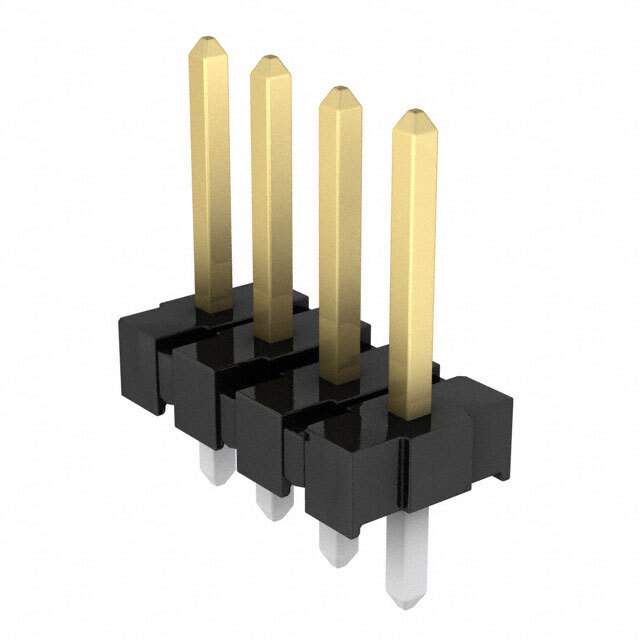

Same model may have multiple batches, images only for reference.

0416610026

Get a Quote

Part No	0416610026
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 3.96MM / Connector Header Through Hole 4 position 0.156" (3.96mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	KK396, 41661
Package	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.156" (3.96mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.450" (11.43mm)
Contact Length - Post	0.172" (4.37mm)
Overall Contact Length	0.750" (19.05mm)
Insulation Height	0.128" (3.25mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
Base Product Number	041661
Standard Package	800
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1348772-0416610026
Ultra Librarian 3D Model	Ultra Librarian 0416610026 CAD Model

Description

The Molex 1348772-0416610026 is a header, breakaway connector that has 4 positions and is part of the KK396, 41661 series.

Number of Positions: 4
Contact Type: Male Pin
Loading: All Positions Loaded
Fastening Type: Push-Pull
Termination: Solder
Pitch: 0.156" (3.96mm)
Contact Finish - Mating: Gold
Contact Material: Brass
Insulation Color: Black
ECCN: EAR99
HTSUS Code: 8536.69.4040
