Products specifications

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 35V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 510mV @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1.4mA @ 35V
Mounting SMD (SMT)
Case / Package DPAK-3
Operating Temperature - Junction -65°C to 150°C
Win Source Part Number 044293-MBRD835LG
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name MBRD835L
Introduction Date May 05, 1997
ECCN EAR99
Country of Origin China, Malaysia, Vietnam
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian MBRD835LG CAD Model

Description

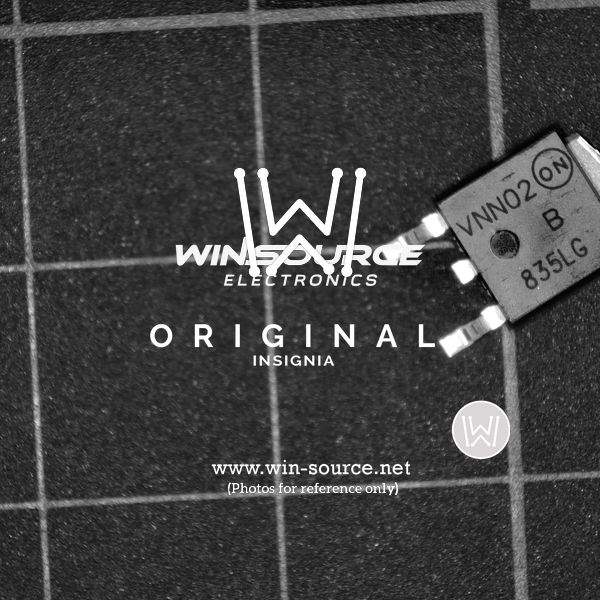

The MBRD835LG from ON Semiconductor is a state-of-the-art Schottky Barrier Rectifier designed to deliver high efficiency and reliability in a compact package. This device is tailored for use in high-frequency power supplies, inverters, and as freewheeling diodes, making it an ideal choice for a vast array of electronic applications.

With its low forward voltage drop, the MBRD835LG ensures minimal power loss and operates with exceptional thermal performance. This characteristic makes it suitable for high-efficiency power management tasks. The device is capable of conducting up to 8A of continuous forward current, and its peak repetitive reverse voltage is rated at 35V, which allows it to handle significant power levels without degradation of its performance.

The MBRD835LG is constructed with ON Semiconductor's patented guard ring technology, which provides enhanced ruggedness and long-term reliability. This technology also contributes to the device's capacity to withstand high surge currents and to offer excellent stability over its entire operating temperature range, which spans from -55°C to 150°C.

Featuring a low profile and compact DPAK (TO-252) package, the MBRD835LG is designed for easy implementation into various circuit designs. Its surface-mount configuration allows for efficient assembly and helps to save valuable board space, which is crucial in modern compact electronic devices.

Environmental considerations are also taken into account with the MBRD835LG, as it is a Pb-free product compliant with the RoHS directive. This compliance ensures that the rectifier is suitable for use in environmentally sensitive applications and markets where regulations restrict the use of hazardous substances.

In summary, the MBRD835LG Schottky Barrier Rectifier from ON Semiconductor represents a blend of performance, efficiency, and reliability. Whether for power conversion or protection, this component is engineered to meet the stringent demands of today's high-performance electronic systems.
