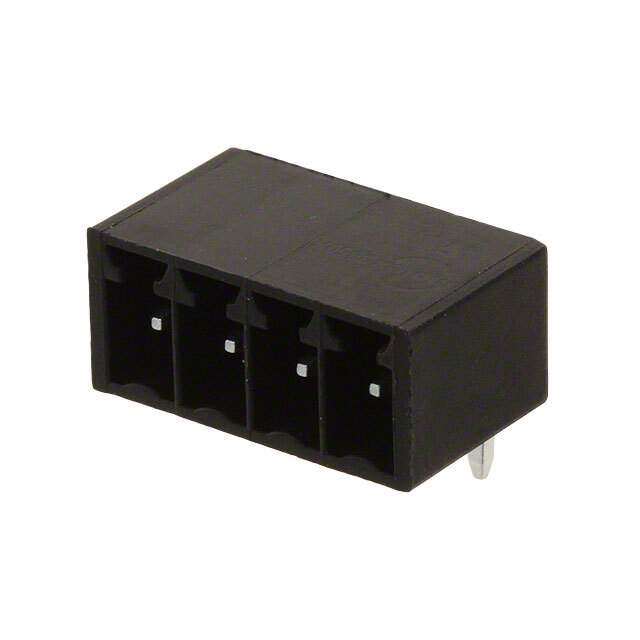

Same model may have multiple batches, images only for reference.

39502-1004

Name: 39502-1004
Brand: Molex, LLC
SKU: 1038969
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	39502-1004
Manufacturer	Molex, LLC
Catalog	Terminal Blocks
Description	Terminal Block Header, Right Angle, 4 Position, 3.5MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Body Material	Polyamide
Color	Black
Connector Type	Terminal Block
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	8 mΩ
Country of Origin	US
Current Rating	8 A
ELV	Compliant
Flammability Rating	UL94 V-0
Halogen Free	Low Halogen
Housing Color	Black
Housing Material	Nylon
Lead Free	Yes
Length	15.4 mm
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Positions	4
Number of Rows	1
Orientation	Horizontal
Packaging	Bulk
Pitch	3.5 mm
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536694040, 8536694040
Termination	Solder
Voltage Rating	300 V
Width	9.2 mm
Win Source Part Number	1038969-39502-1004
Categories	Terminal Blocks
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 39502-1004 CAD Model

Description

This Molex Terminal Block is a 4-position block with a pitch of 3.5 mm, and a voltage rating of 300 V.

Positions: 4
Pitch: 3.5 mm
Voltage Rating: 300 V
Current Rating: 8 A
Contact Material: Brass
Contact Plating: Tin
Contact Resistance: 8 mΩ
Housing Material: Black nylon
Body Material: Polyamide
Termination: Solder
Orientation: Horizontal
Lead-Free: Yes
RoHS Compliant: Yes
Low Halogen: Yes
Maximum Temperature: 105 °C
Minimum Temperature: -40 °C
