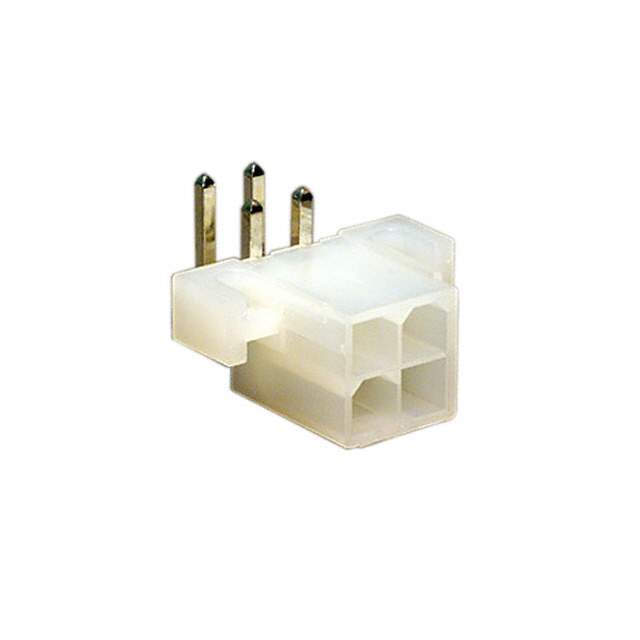

39291048 Real Image
Same model may have multiple batches, images only for reference.

39291048

Part No 39291048
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 4POS 4.2MM R/A TIN
Datasheet
39291048 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Series Mini-Fit Jr 5569
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.165" (4.20mm)
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Number of Positions 4
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.165" (4.20mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.142" (3.60mm)
Insulation Height 0.378" (9.60mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100μin (2.54μm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Features Mounting Flange
Material Flammability Rating UL94 V-2
Insulation Color Natural
Contact Finish Thickness - Post 100μin (2.54μm)
Applications General Purpose, Industrial, Telecommunications
Win Source Part Number 763434-39291048
Popularity Medium
Supply and Demand Status Limited
Family Name 5569
Introduction Date June 08, 2010
ECCN EAR99
Country of Origin Brazil, China, Hong Kong, India, Japan, Malaysia, Mexico, Puerto Rico, Republic of Korea, United States of America
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian 39291048 CAD Model

Description

The Molex, LLC 39291048 is a Mini-Fit Jr 5569 series connector header.

  • Design: Shrouded 4-wall
  • Mounting Feature: Mounting Flange
  • Pitch-Mating: 0.165 inches (4.20mm)
  • Row Spacing-Mating: 0.165 inches (4.20mm)
  • Contact Shape: Square
  • Insulation Color: Natural
  • Contact Finish Thickness-Mating and Post: 100μin (2.54μm)
  • Contact Length-Post: 0.142 inches (3.60mm)
  • Packaging: Bulk
  • Supply and Demand Status: Limited
  • Halogen-Free Requirements: Compliant
  • Estimated EOL Date: 2028
  • Alternative Parts (Cross-Reference): IPBT-102-H1-T-D-GP-RA, IPBT-102-H1-T-D-RA-GP, 5794172-3, and others
  • Applications: General purpose, industrial, and telecommunications
