Same model may have multiple batches, images only for reference.

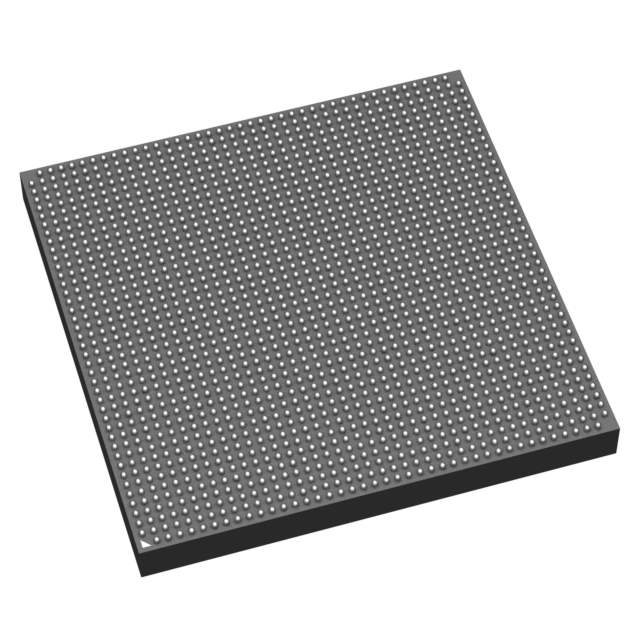

XCZU49DR-2FFVF1760I Real Image
Same model may have multiple batches, images only for reference.

XCZU49DR-2FFVF1760I

Part No XCZU49DR-2FFVF1760I
Manufacturer Amd
Catalog Embedded - System On Chip (SoC)
Description IC ZUP RFSOC A53 FPGA 1760BGA / Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™ System On Chip (SOC) IC Zynq® UltraScale+™ RFSoC Zynq®UltraScale+™ FPGA, 930K+ Logic Cells 533MHz, 1.333GHz 1760-FCBGA (42.5x42.5)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - System On Chip (SoC)
Mfr AMD
Series Zynq® UltraScale+™ RFSoC
Package Tray
Architecture MCU, FPGA
Core Processor Quad ARM® Cortex®-A53 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5 with CoreSight™
RAM Size 256KB
Peripherals DDR, DMA, PCIe
Connectivity CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
Speed 533MHz, 1.333GHz
Primary Attributes Zynq®UltraScale+™ FPGA, 930K+ Logic Cells
Temperature Range - Operating -40°C ~ 100°C (TJ)
Package / Case 1760-BBGA, FCBGA
Supplier Device Package 1760-FCBGA (42.5x42.5)
Number of I/O 622
Standard Package 1
MSL Level 4 (72 Hours)
Win Source Part Number 1351166-XCZU49DR-2FFVF1760I
Ultra Librarian 3D Model Ultra Librarian XCZU49DR-2FFVF1760I CAD Model

Description

The XCZU49DR-2FFVF1760I is a system on chip (SoC) manufactured by AMD.

  • Series: Zynq UltraScale+ RFSoC
  • Package: Tray
  • Standard Package: 1
  • Core Processor: Quad ARM Cortex-A53 MPCore with CoreSight and dual ARM Cortex-R5 with CoreSight
  • Speed: 533MHz and 1.333GHz
  • Connectivity: CANbus, EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG
  • Peripherals: DDR, DMA, PCIe
  • I/O: 622
  • RAM Size: 256KB
  • Flash Size: No Flash size specified
  • Architecture: MCU and FPGA architecture
  • Primary Attributes: Zynq UltraScale+ FPGA, 930K+ logic cells
