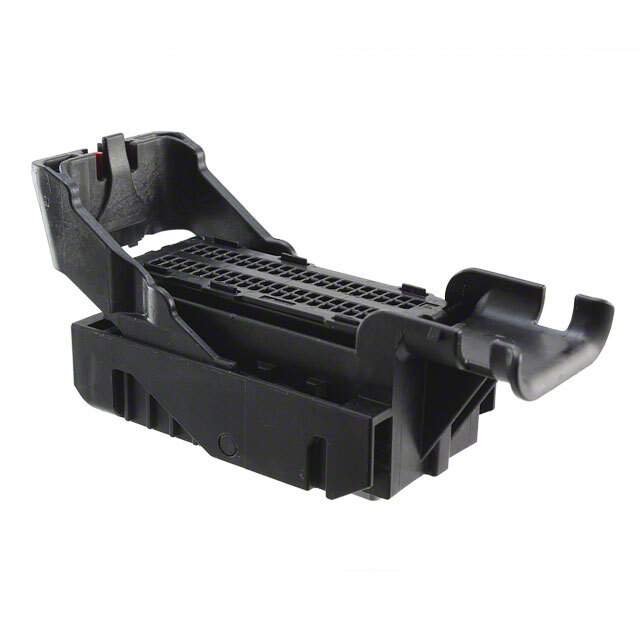

34566-0803 Real Image
Same model may have multiple batches, images only for reference.

34566-0803

Part No 34566-0803
Manufacturer Molex, LLC
Catalog Custom Parts (0 - A)
Description 2.54mm Pitch, MX123 Female Receptacle Housing, Keying Option H, Wire Dress Option 0, 80 Circuits, Gray TPA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Nylon, Polyamide
Case / Package 0803
Color Grey
Country of Origin US
Current Rating 25 A
Depth 47.92 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Grey
Housing Material Nylon
Lead Free Lead Free
Length 100.8 mm
Max Operating Temperature 125 °C
Min Operating Temperature -40 °C
Number of Contacts 80
Number of Positions 80
Number of Rows 4
Orientation Straight
Pitch 2.54 mm
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination Crimp
Voltage Rating (DC) 500 V
Win Source Part Number 1187126-34566-0803
Categories Custom Parts
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 34566-0803 CAD Model

Description

Molex, LLC's 34566-0803 is a custom part electronic component that has a medium popularity.

  • Win Source Part Number: 1187126-34566-0803
  • Number of Positions: 80
  • Pitch: 2.54 mm
  • Color: Grey
  • Termination: Crimp
  • Current Rating: 25 A
  • Number of Contacts: 80
  • Gender: Receptacle
  • Length: 100.8 mm
  • Housing Material: Nylon
  • Orientation: Straight
  • Housing Color: Grey
  • Body Material: Nylon, Polyamide
  • Supply and Demand Status: Limited
  • Lead Free: Yes
  • RoHS Compliant: Yes
  • Voltage Rating (DC): 500 V
